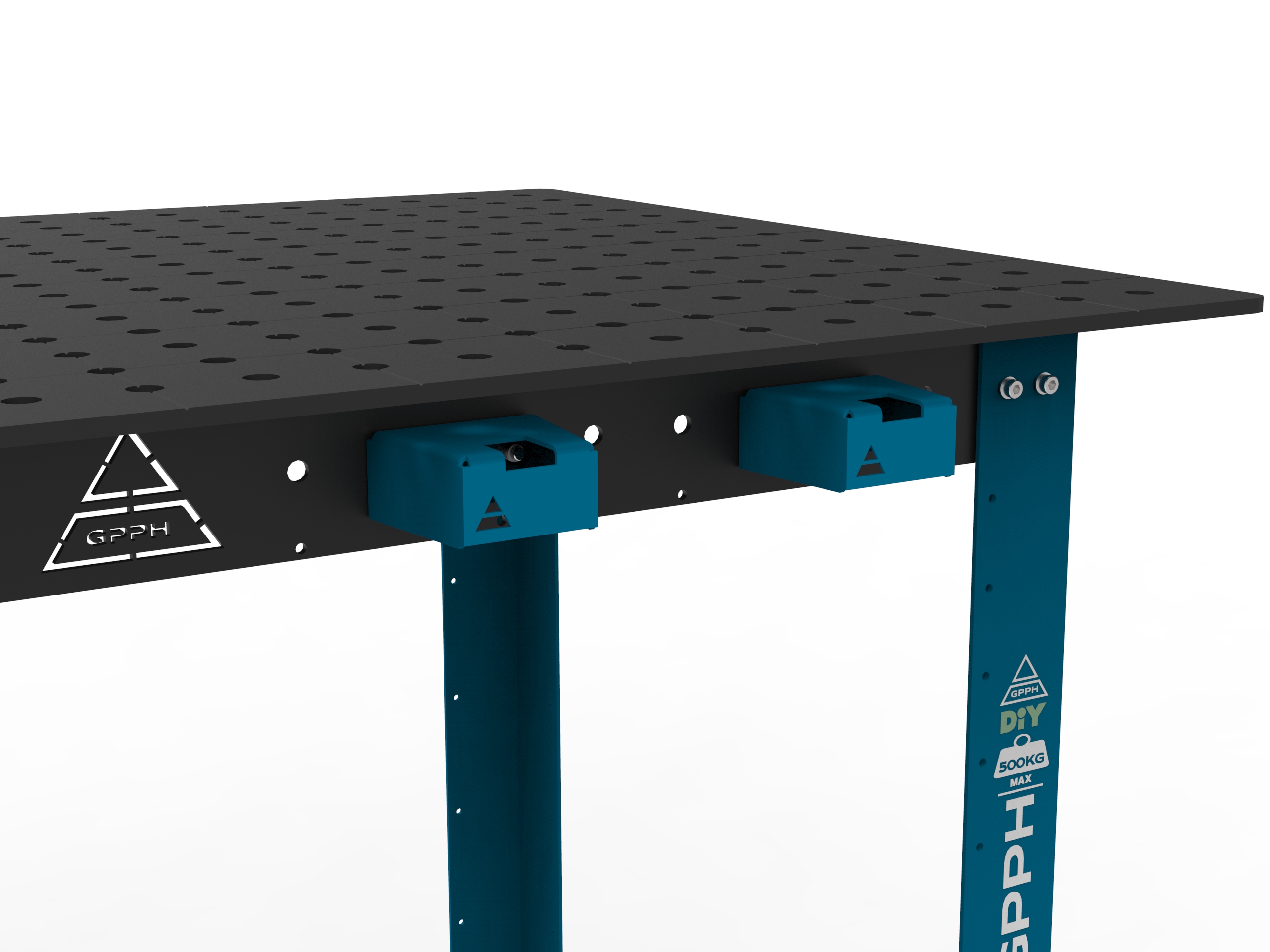

Welding & Assembly Table DIY Series by GPPH. The DIY Welding and Assembly Table is available in holes 16 mm in a 50×50 mm grid. In addition, the DIY table has an engraved scale in a 100×100 mm grid. The height of the table is 880 mm. The DIY welding and assembly table is made of S355J2+N material. DIY tables are densely ribbed, which affects their perfect flatness [0,5 mm per meter]. In addition, they have equipped with leveling feet that level the unevenness of the floor. The DIY table top is 8 mm thick. The maximum load capacity of the table is 500 kg. The table weight is approx. 90 kg. This product will be perfect not only for the welder and the DIY enthusiast, carpenter, and car mechanic, as an auxiliary table for CNC machines and various workshops.

For DIY welding and assembly tables, we offer two ready-made sets of tools from the PLUS series fastened with a fast assembly bolt 19-22 ECO/PLUS .

Tool kit no. 1 includes shelf adapters to fit a mobile tool shelf to the side of a DIY tabletop.

Specifications:

• Table size dimensions :(Length x width): 1200×800
• Available dimensions for pre-order: 1000×600 | 1200×800 | 1200×1200 | 1500×1480 | 2400×1200 mm
• Stable screwed frame construction
• Tables can be combined freely to extend a working surface
• The highest quality of workmanship
• Produced with standard ISO 2768-1
• Perfect flatness of the table [+/- 0,5mm]
• Made of S355J2+N
• Holes of system ø16 in the grid 50x50mm
• Engraved scale in the grid 100x100mm
• Leveling feet to compensate for unevenness of the flooring
• Height adjustment at the leveling feet
• Welded reinforcement ribs
• Thickness: 8 mm
• Capacity: 500 kg
• Table weight: approx. 90 kg
• Tools from the PLUS series, fixed with the bolt
