Variable Speed Mini Lathe
€ 1,850.00 + VAT
Available on backorder
Available on backorder
Description

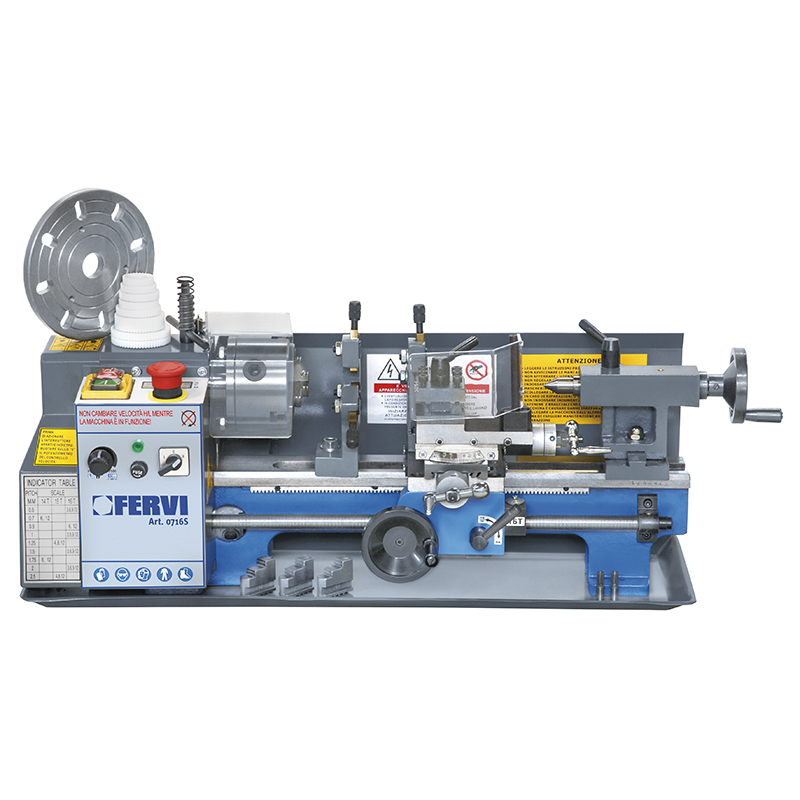

Variable Speed Mini Lathe
Variable Speed Mini Lathe by Fervi Pro smart equipment. Automatic longitudinal and variable speed shown on a digital display.
- Center height 100 mm
- Max swing over the bed 170 mm
- Max swing over the cross slide 125 mm
- Tool height 10 mm
- Distance between Centres 350 mm
- Spindle bore 20 mm
- Spindle bore taper MT 3
- Variable spindle speed (2) 100 ÷ 1100 | 200 ÷ 2500 rpm

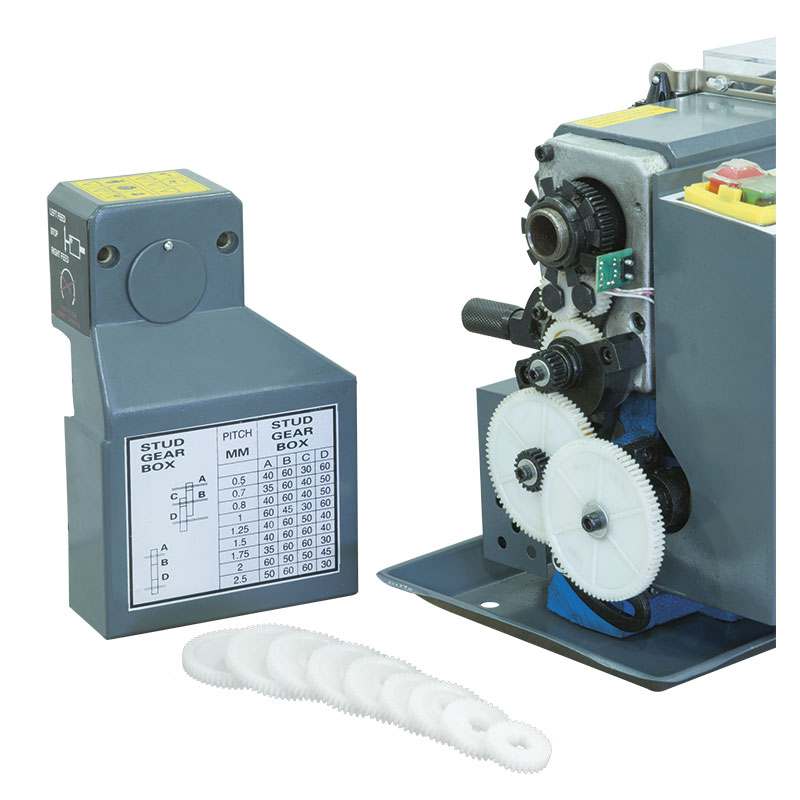

- Metric threads 0,5 ÷ 2,5 mm
- Tailstock taper MT 2
- Motor 230 V 50 | 60 Hz 0,6 kW
- Dimensions 750 x 245 x 290 h mm
- Net weight 46 kg
- Packaging dimensions 825 x 385 x 435 h mm
- Gross weight 53,50 kg
- EAN Code 8012667304829

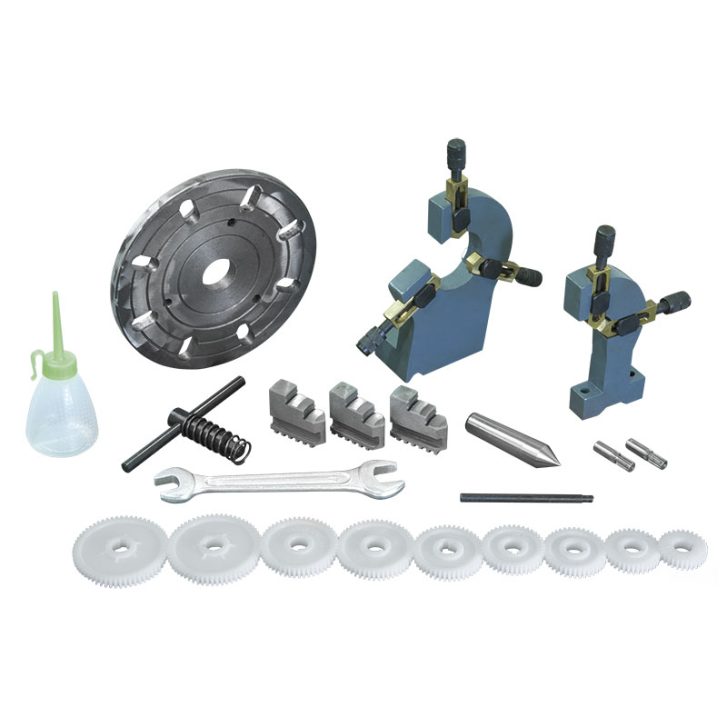

Included in price:
- 3+3 jaw self centering chuck Ø 100 mm
- Flange ø 160 mm
- Follow rest
- Steady rest
- Dead center MT 2
- Thread dial
- Turret safeguard
- Chuck safeguard
- Full length splash guard
- 4 side fix tool post 10 mm
Download
The new product catalogue 2023
RELATED PRODUCTS

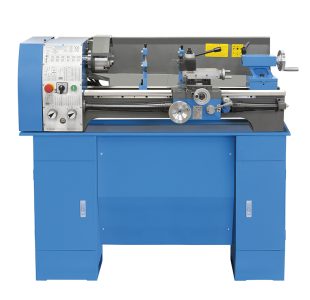

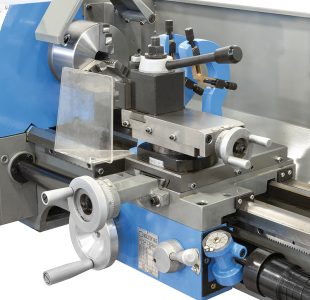

Bench Lathe – Belt Speed Change
SKU:
T660
Available on backorder
- V-way bed is hardened and precision ground.
- Spindle is supported by precision tapered roller bearing.
- High precision chuck.
- T-slotted cross slide.
- Power longitudinal feed allows threading.
- Adjustable grids for slideways.
- Right and left hand threads cutting is available.
- Gear mill head gets more torque.
