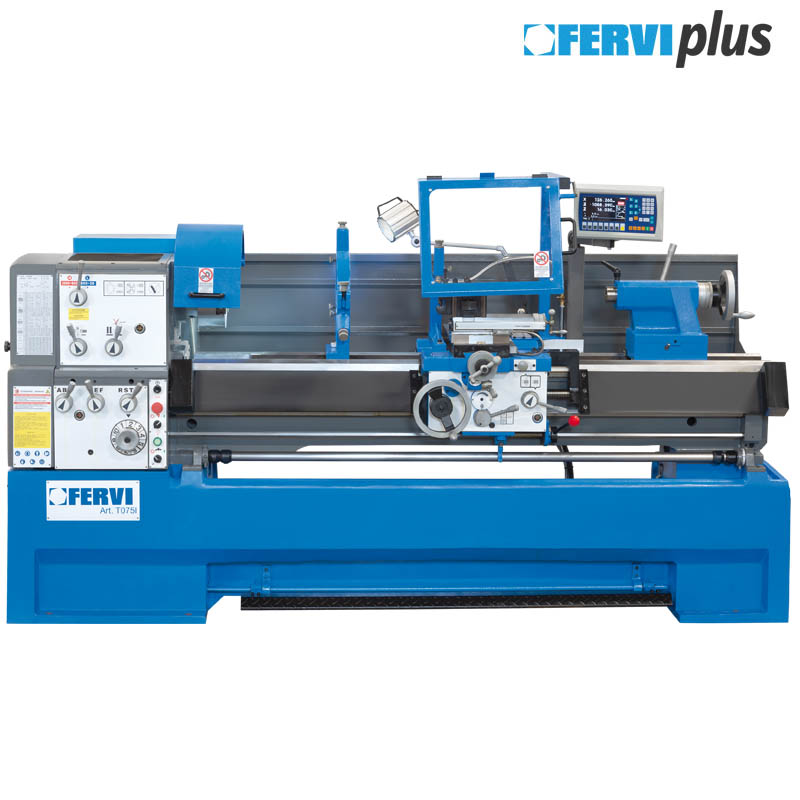

Variable Gear Head Lathe with Inverter

Variable Gear Head Lathe with Inverter

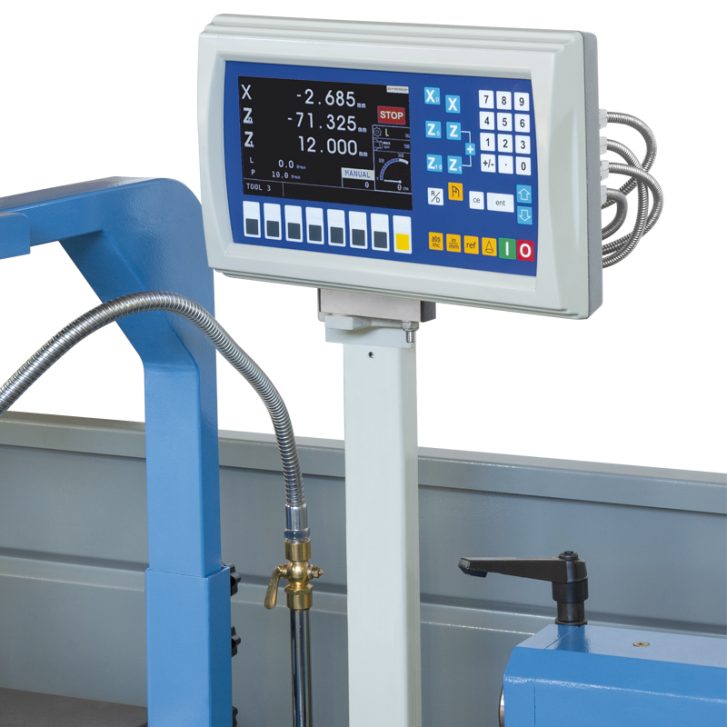

Variable Gear Head Lathe with Inverter by Fervi pro smart equipment. 3-axis display with speed variation control, semi norton gearbox. With cast iron monobloc base. The computer-viewer varies the rotation speed according to the turned diameter.

Centers height 230 mm

Max swing over the bed 460 mm

Max swing over the cross slide 270 mm

Max swing over the gap 690 mm

Tool height 25 mm

Max length of workpiece 1500 mm

Spindle bore 58 mm

Spindle nose Camlock Camlock D1-6

Spindle bore taper MT 6

Variable spindle speed (2) 30 ÷ 600 | 600 ÷ 2000 rpm

Longitudinal feeds 0,014 ÷ 0,784 mm/rev

Cross feeds 0,031 ÷ 1,7 mm/rev

Metric threads 0,1 ÷ 14 mm

Inch threads 2 ÷ 112 TPI

Tailstock taper MT 4

Motor 400V 50/60 Hz 5,5 kW

Cooling pump 400V 50 Hz 90 W

Net weight 1970 kg

Packaging dimensions 2840 x 1150 x 1430 mm

Gross weight 2226,00 kg

EAN Code 8012667340315

Included:

3+3 jaw self centering chuck Ø 250 mm
4 independent jaw chuck Ø 250 mm
Reduction sleeve MT 6/4
Face plate Ø 350 mm
Follow rest
Steady rest
2 x Dead center MT 4
Live center MT 4
Thread dial
Leadscrew hood

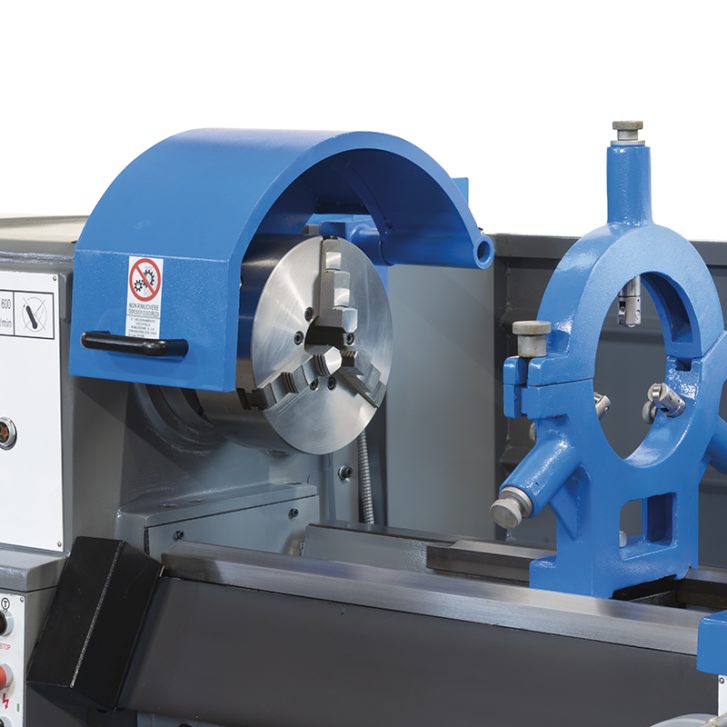

Chuck safeguard
Full length splash guard
Electro-mechanic foot brake

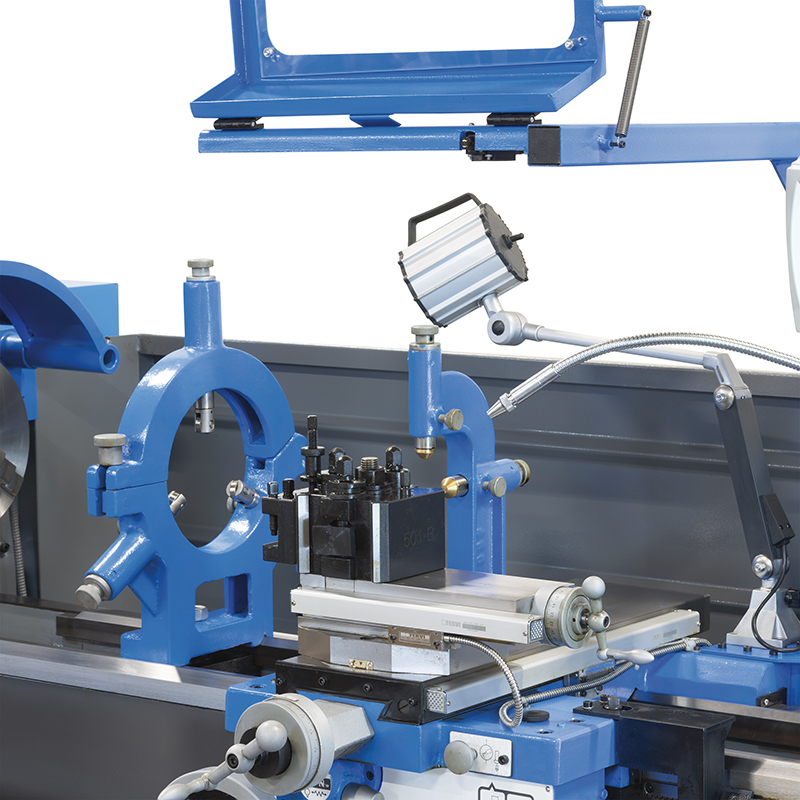

Quick change tool post type B
Working lamp LED
Cooling system
Turret guard
Quick locking tailstock carriage
Wagon gears in oil bath
