Ultra Thin Scissor Lift

Ultra Thin Scissor Lift

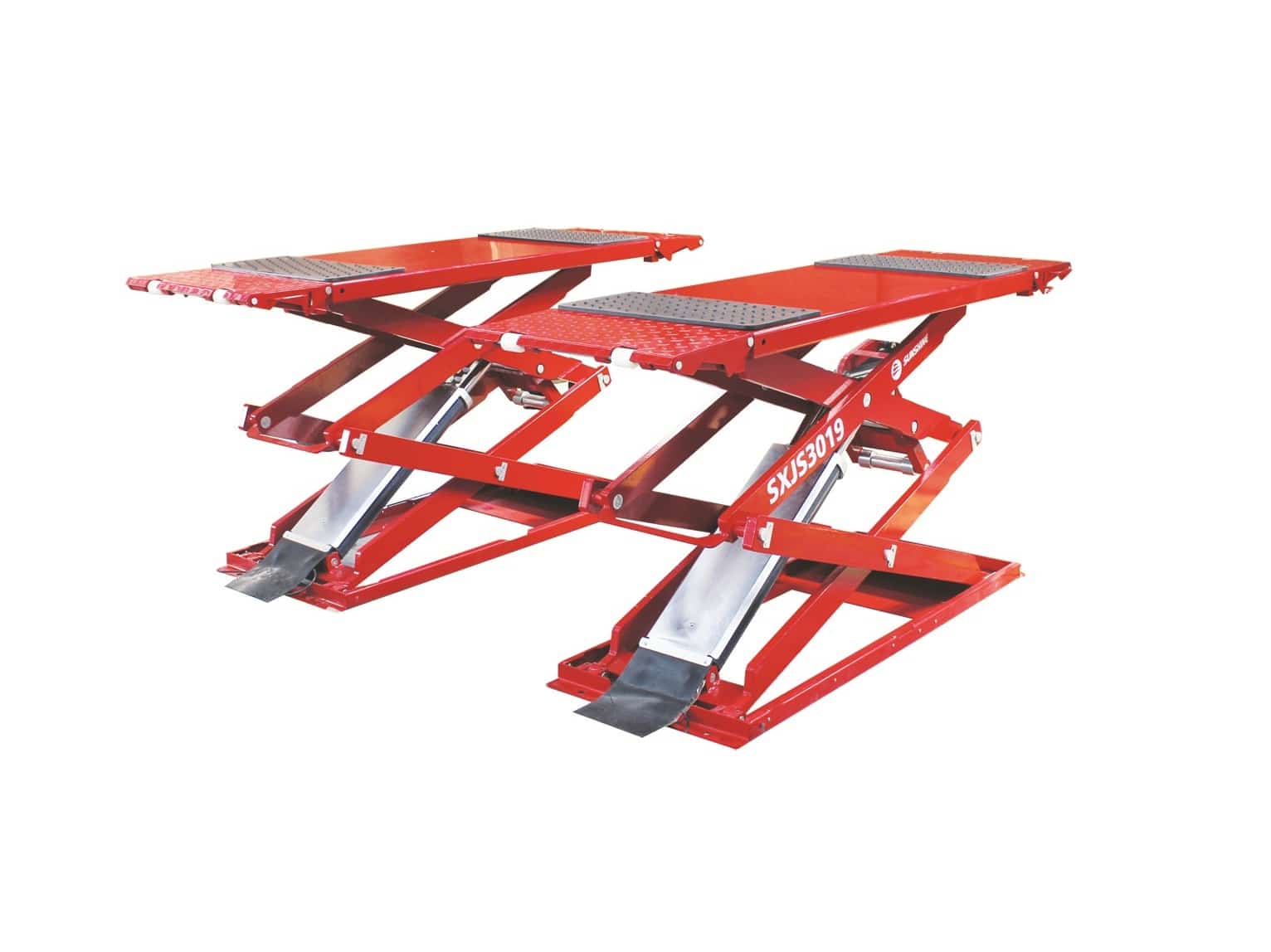

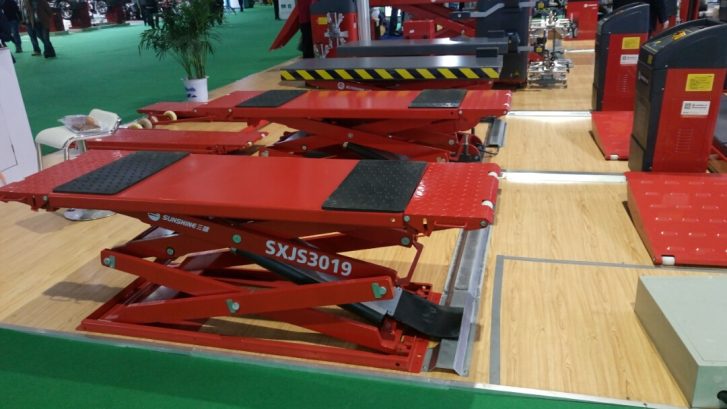

Ultra Thin Scissor Lift by Sunshine Co. Equiped with an easy leveling design that brings you a simple and fast leveling adjustment. Two oil circuit systems are hydraulic locked with each other, making it safe and secure. Minimum height is only 115mm, suitable for on ground installation. Main platform length is 1470mm and can be extended up to 2042mm. Maximum height is 1900mm.

Control system made by PCB and Siemens electrical parts, stable performance. Ideal choice for quick tire replacement and simple service

Specifications:

• Lifting Capacity: 3.5T
• Lifting Height: 1900mm
• System pressure: 25Mpa
• Pressure pneumatic: 0.4-0.8Mpa
• Motor power: 3KW
• Voltage: 220V 1ph
• Min. Height: 110mm

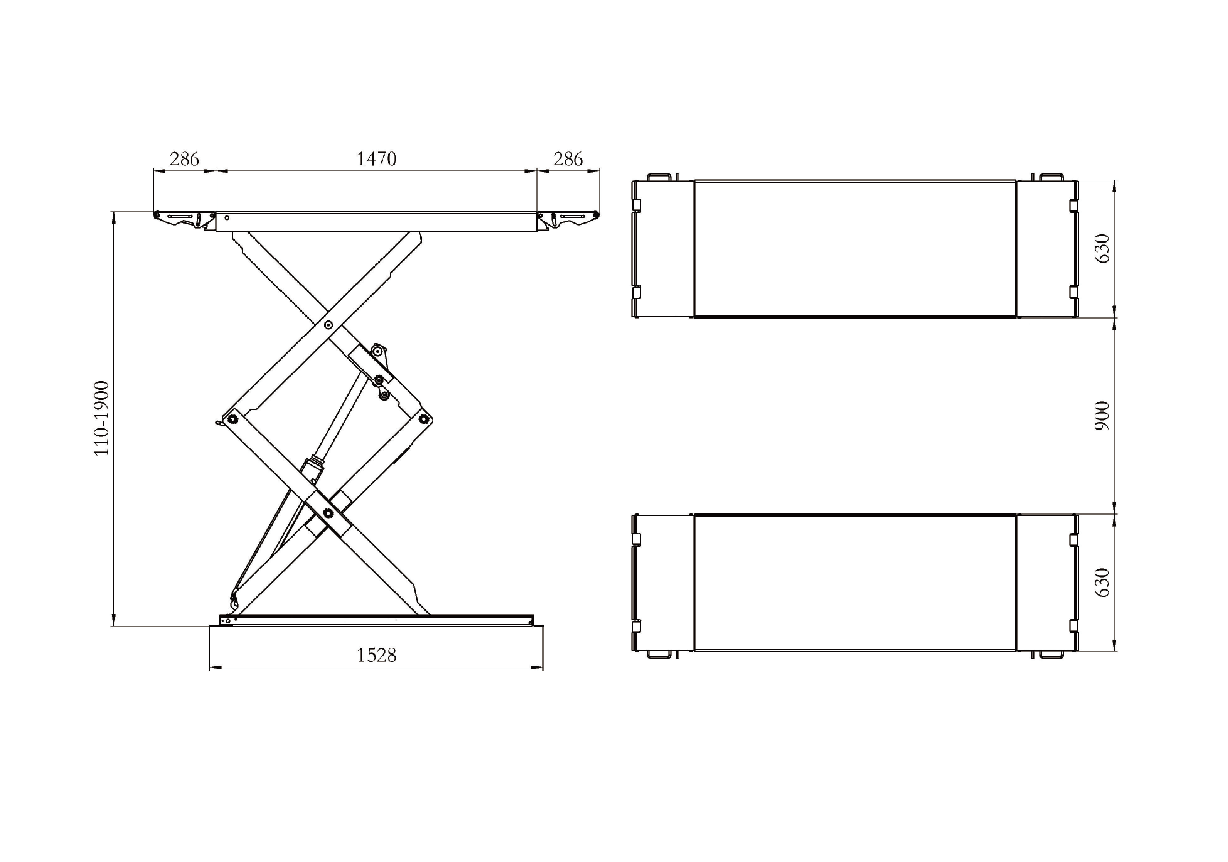

• Platform Length: 1470-2042mm

Features:

• Minimum height is only 110mm, suitable for on ground installation
• Main platform length is 1470mm, extended up to 2042mm
• Scissor arms use international standard solid steel Q345, permanent deformation
• Dual circuit design, more stable and secure
• Maximum height is 1900mm
• Control system use printing PCB and Siemens electrical parts, stable performance
• The overall design is suitable for fast repair maintenance, preflight and luxury low chassis vehicles
• Ultra thin design, saves space in garage

Advantages of Sunshine lifts:

1. Steel is made of the original steel plate, no deformation during usage
2. Electrostatic powder coating using DUPONT POWER. Which is corrosion-resistant.
3. Slipway and arm protection added.
4. The lowest height of the tray is only from 110mm, which is suitable to all car types.
5. Hydraulic power unit is CE certificated.
6. All the products have 24 months warranty after receiving the goods.

*Toolwarehouse offers free delivery for this product

* Please note that installation services are charged extra.
