Two-Post Clear Floor Lift

Two-Post Clear Floor Lift

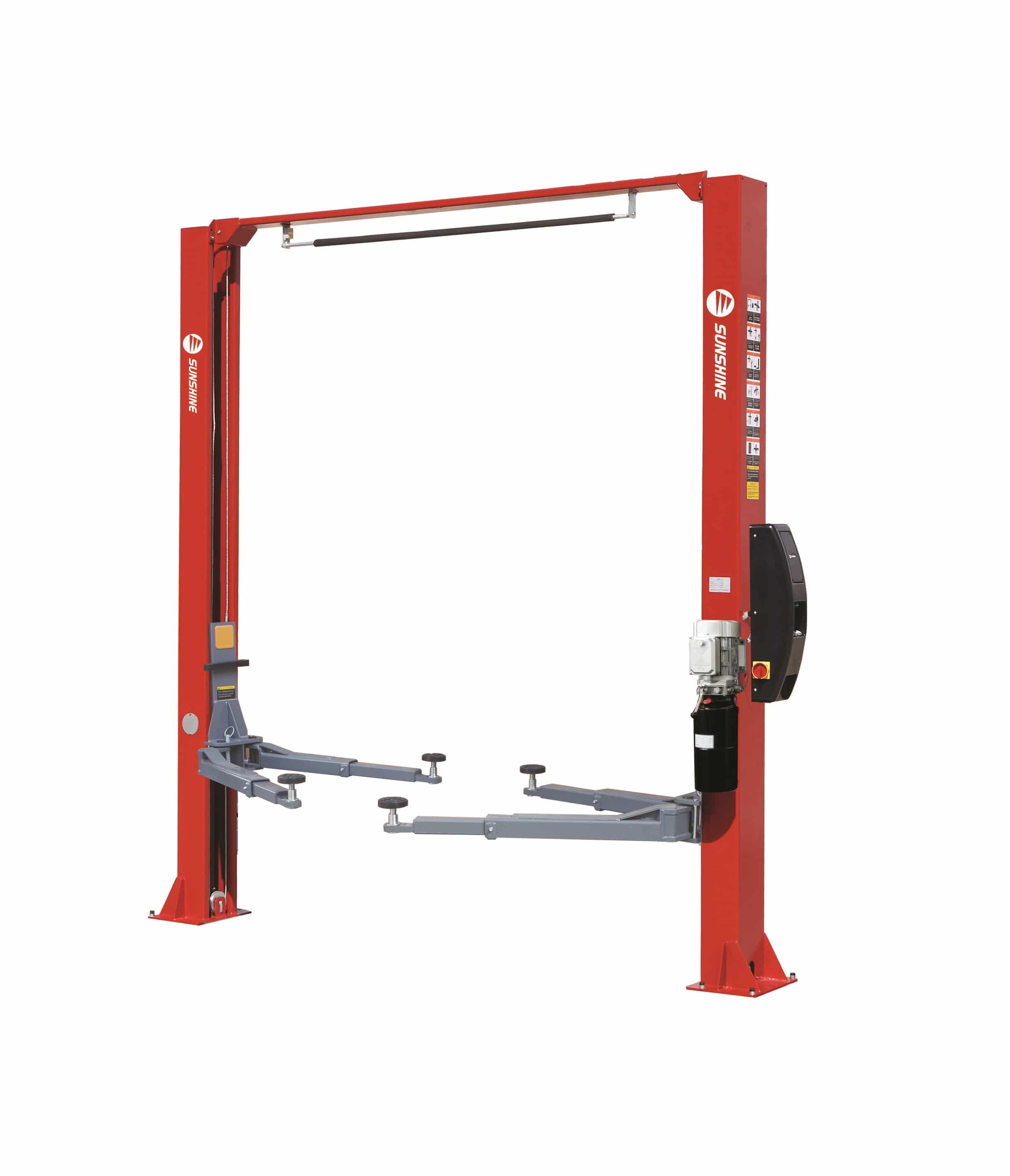

Two-Post Clear Floor Lift by Sunshine Co. One-piece steel bending structure carriage with a new structure stiffening plate, makes it very durable and strong. The arms are made of 2 parts,front arm is short,and rear arm is long, suitable for vehicles with different wheelbase

Control system made by PCB and Siemens electrical parts, stable performance. Ideal choice for quick tire replacement and simple service

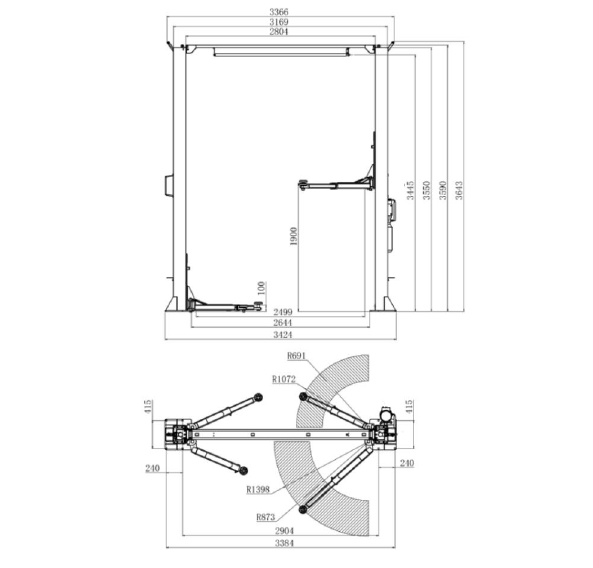

Specifications:

• Lifting Capacity: 3.5T
• Post Height: 3660mm
• Lifting Height: 1900mm
• System pressure: 16Mpa
• Motor power: 2.2KW
• Voltage: 220V 1ph
• Tray Min. Height: 145mm
• Total width: 3421mm
• Passway space: 2800mm
• Electrical Release

Feautures:

• Overall bending structure carriage, new structure stiffening plate strong
• Interchangeable front and rear assymetrical arm, suitable for cars with different wheelbase, save more space
• Suitable for different chassis height carsor SUVs, height adaptor and bracket by laser cutting
• Uses international brand oil seal, reduce oil leakage
• Four protection device: oil pump ant-explosion device, mechanical lock, hydraulic self lock, arm self lock
• Lifting height up to 1900mm, drive through clearance is 2500mm
• High strength structure design, complies CE standard

Whole design suitable for tire dismounting,chassis repair, oil change, auto check etc. Suitable for auto repair shop, auto service station and garage.

Advantages of Sunshine lifts:
1. Steel is made of the original steel plate, no deformation during usage
2. Electrostatic powder coating using DUPONT POWER. Which is corrosion-resistant.
3. Slipway and arm protection added.
4. The lowest height of the tray is only from 110mm, which is suitable to all car types.
5. Hydraulic power unit is CE certificated.
6. All the products have 24months warranty after receiving the goods.

*Toolwarehouse offers free delivery for this product
