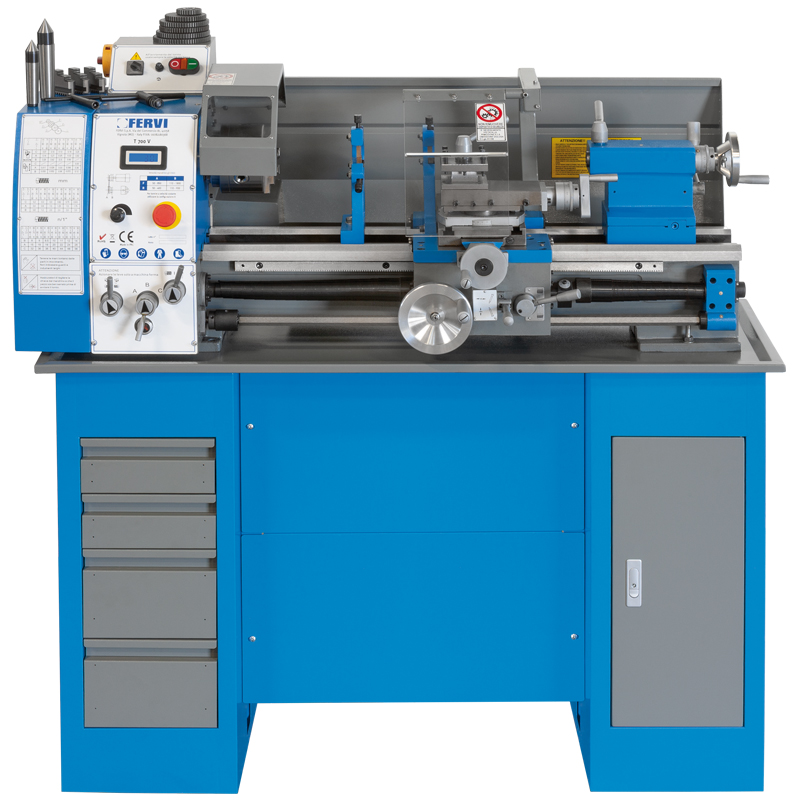

Variable Speed Parallel Gear Lathe

Variable Speed Parallel Gear Lathe

Variable Speed Parallel Gear Lathe by Fervi Pro Equipment. Semi Norton gear box, longitudinal and cross feeds, turning leadscrew, partially assembled bench with 3 drawers and cabinet. Turning bar with adjustable clutch.

Centers height 145 mm

Max swing over the bed 290 mm

Max swing over the cross slide 150 mm

Tool height 12 mm

Max length of workpiece 700 mm

Spindle bore 26 mm

Spindle bore taper MT 4

Variable spindle speed 50 ÷ 1000 rpm |110 ÷ 2000 rpm

Longitudinal feeds 0,07 ÷ 0,65 mm/rev

Cross feeds 0,03 ÷ 0,12 mm/rev

Metric threads 0,2 ÷ 3,5 mm

Inch threads 8 ÷ 56 TPI

Tailstock taper MT 2

Motor 230 V 50 Hz 1,5 kW

Dimensions 1129 x 690 x 1127 mm

Net weight 270 kg

Packaging dimensions 1350 x 720 x 740 h mm

Gross weight 303,00 kg

EAN Code 8012667284060
