PFI Injector Cleaner & Tester

PFI Injector Cleaner & Tester

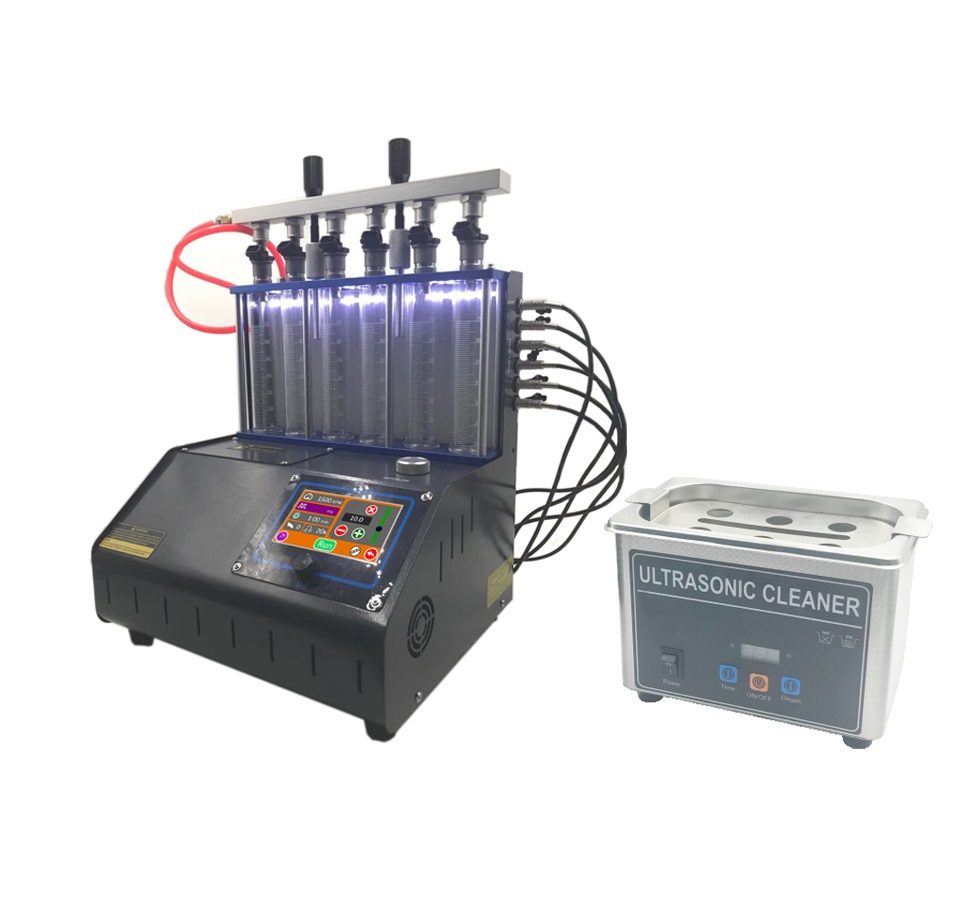

PFI Injector Cleaner & Tester by Toolwarehouse. Gasoline direct injection is a technology that injects fuel directly into the cylinder and mixes it with the intake air. Compared to conventional injectors, the use of GDI can help improve engine efficiency and specific power output as well as reduce exhaust emissions. CT400 not only supports GDI, EFI, FSI and other types of fuel injectors, but also compatible with common standard fuel injectors.

It is an expert in Injector solutions, featuring 12 injector-specific functions

• Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors
• Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
• Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
• High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
• Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
• Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.
• Leakage test: Test the sealing condition of the fuel injector.
• Idle dpeed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
• Medium speed sprayability test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.
• High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
• Reverse flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).
• No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, which requires special adapters.

Full inspection of injectors

• Uniformity test: To test the uniformity of injecting amount of each injector.
• Sprayability test: To monitor the spraying status of each injector with the help of backlight.
• Leakage test: To test the sealing and dribbling conditions of injectors under high pressure.
• Injecting flow test: To check the injecting amount of the injector of specific injection condition(eg. same time and number of times).
