Jollift Bench 1330

Jollift Bench 1330

Jollift Bench 1330 by FI.TIM. Floor-mounted benches electrohydraulic version with lifting arms and independent clamp brackets.

Bench complete with:

• Electrohydraulic control unit with 6 m long hoses between lift and control unit
• 4 telescopic closable lifting arms complete with rotation locking / unlocking
• 4 high and 4 low rubber blocks
• 2 tyre guards
• Descent stop (foot protection against crushing)
• Acoustic signal during descent
• Ce approved

Lift dimensions

• Minimum height: 98 mm
• Length: 2200 mm
• Upper platform width: 780 mm
• Lifting height: 1300 mm
• Maximum capacity: 3000 kg

Models Available:

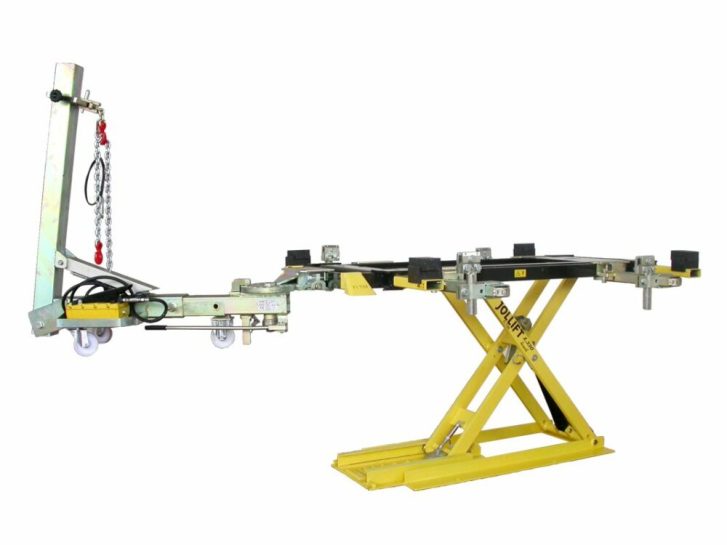

1330B N 1ROTELSC19: Jollift 1330 bench n equipped with pulling system. Supplied with traction arm attachment. 6ton one horizontal rotation telescopic traction arm. Complete with pneumohydraulic pump and pressure gauge to check pull force, cylinder, cylinder guard, chain, safety cable. no. 04 sc19 adjustable compact clamps with shaft complete with brackets for fastening the clamps to the upper platform of the lift.

1330B N 2ROFL08: Jollift 1330 bench n equipped with pulling system. Supplied with traction arm attachment. 6ton double horizontal rotation traction arm complete with pneumohydraulic pump and pressure gauge to check pull force, cylinder, cylinder guard, chain, safety cable, roller for down pulling. no. 04 fl08 adjustable clamps with perforated shafts and pivots and rubber stoppers complete with brackets for fastening the clamps to the upper platform

1330B N 10TONFL08: Jollift 1330 bench n equipped with pulling system Supplied with traction arm attachment, 10ton 2ro double horizontal rotation traction arm. Complete with pneumohydraulic pump and pressure gauge to check pull force, pneumohydraulic, chain, safety cable, roller for down pulling, extension for up pulling. no. 04 fl08 adjustable clamps with perforated shafts and pivots and rubber stoppers complete with brackets for fastening the clamps to the upper platform

*Delivery 6-8 weeks after confirmation.
