Gear Head Lathe with Inverter and Read Out

Gear Head Lathe with Inverter and Read Out

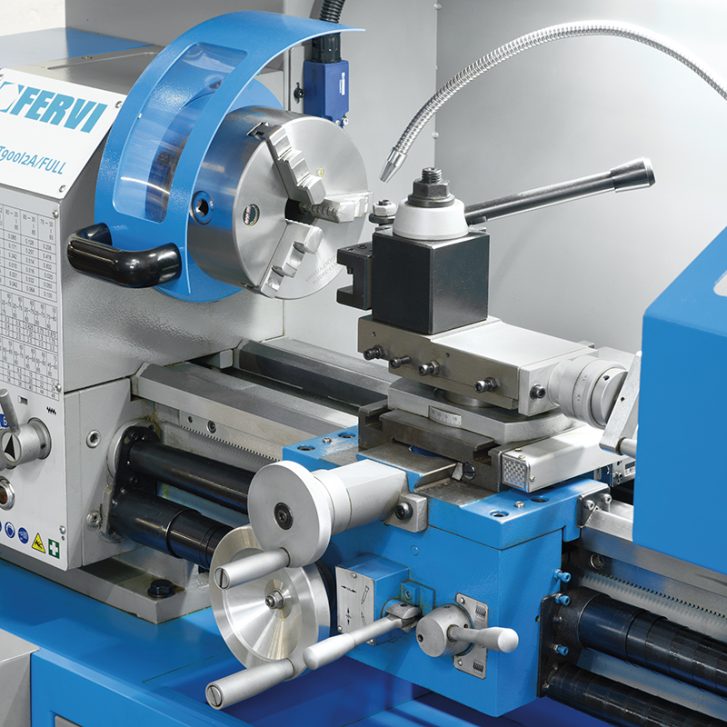

Gear Head Lathe with Inverter and Read Out by Fervi Pro smart equipment. Semi norton gear box and belt drive, longitudinal and cross feeds, turning, leadscrew. Bench with drawers and a cabinet complete with accessories. Turning bar with adjustable clutch.

Centers height 160 mm

Max swing over the bed 320 mm

Max swing over the cross slide 210 mm

Tool height 20 mm

Distance between centers 830 mm

Spindle bore 38 mm

Spindle nose Camlock Camlock D1-4

Spindle bore taper MT 5

Variable spindle speed 60 ÷ 1600 rpm

Longitudinal feeds 0,085 ÷ 0,832 mm / giro

Cross feeds 0,01 ÷ 0,10 mm/giro

Metric threads (18) 0,2 ÷ 3,5 mm

Inch threads (21) 8 ÷ 48 TPI

Tailstock taper MT 3

Motor 230 V 50/60 Hz 1,5 kW

Dimensions 1550 x 660 x 1790 mm

Net weight 530 kg

Gross weight 368,00 kg

EAN Code 8012667395490

Included:

3+3+3 jaw self centering chuck Ø 160 mm

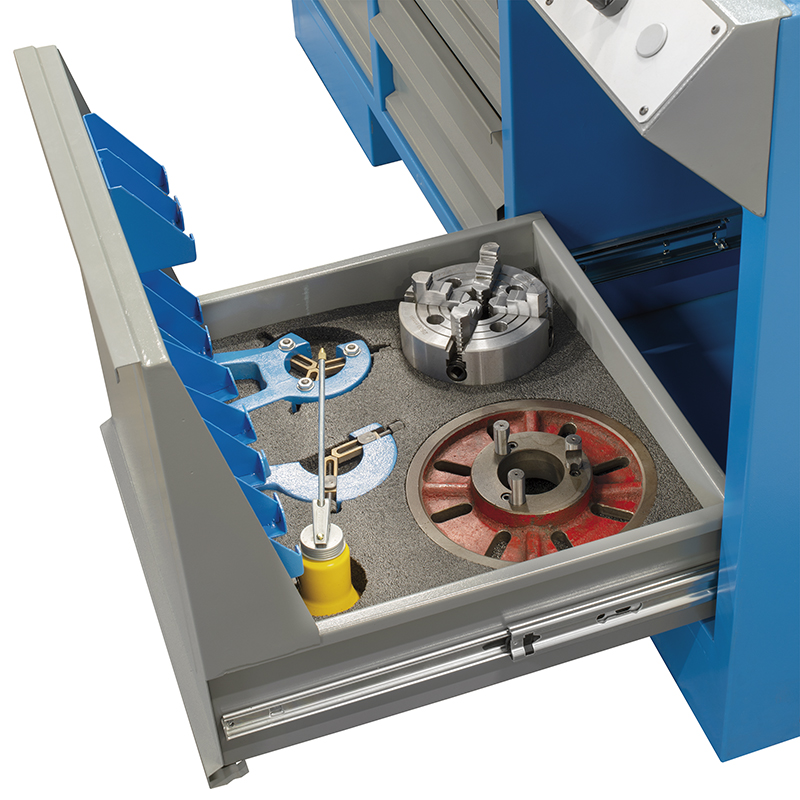

4 Reversible indipendent jaws chuck Ø 160 mm
Face plate Ø 240 mm
Flange for 4-jaw chuck Ø 160 mm
Follow rest
Steady rest
Dead center MT 3
Dead center MT 5
Live center MT 3
Keyless chuck with MT 3 connection
Clutch on turning bar
Selector negative electro-brake
Leadscrew hood
Slidable turret safeguard
Chuck safeguard with micro switch
Full length splash guard
Quick change tool post T0AE
LED light
Quick locking tailstock carriage

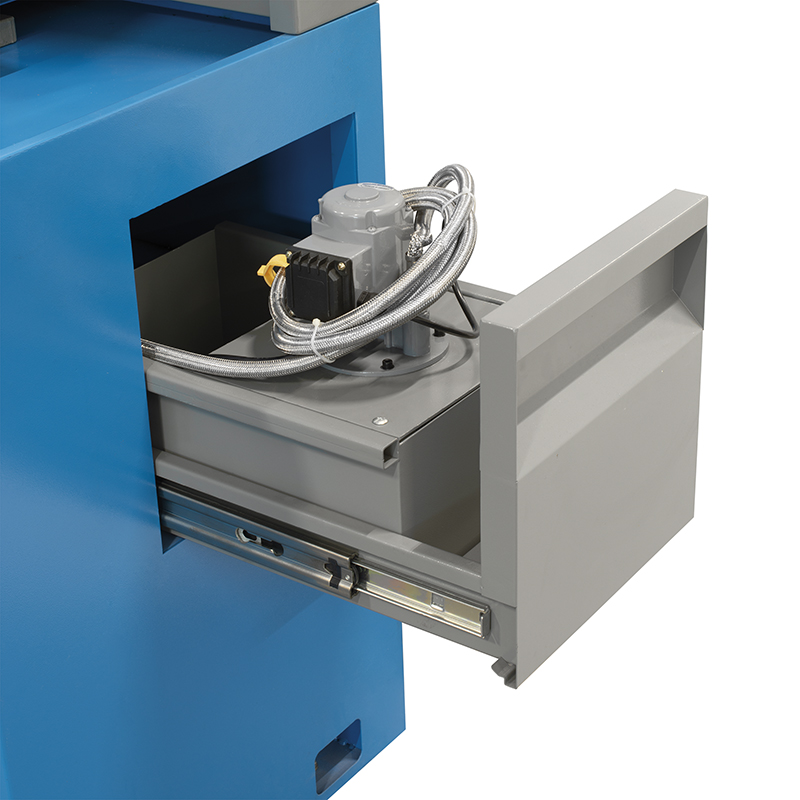

Refrigeration system with pump in sliding
drawer

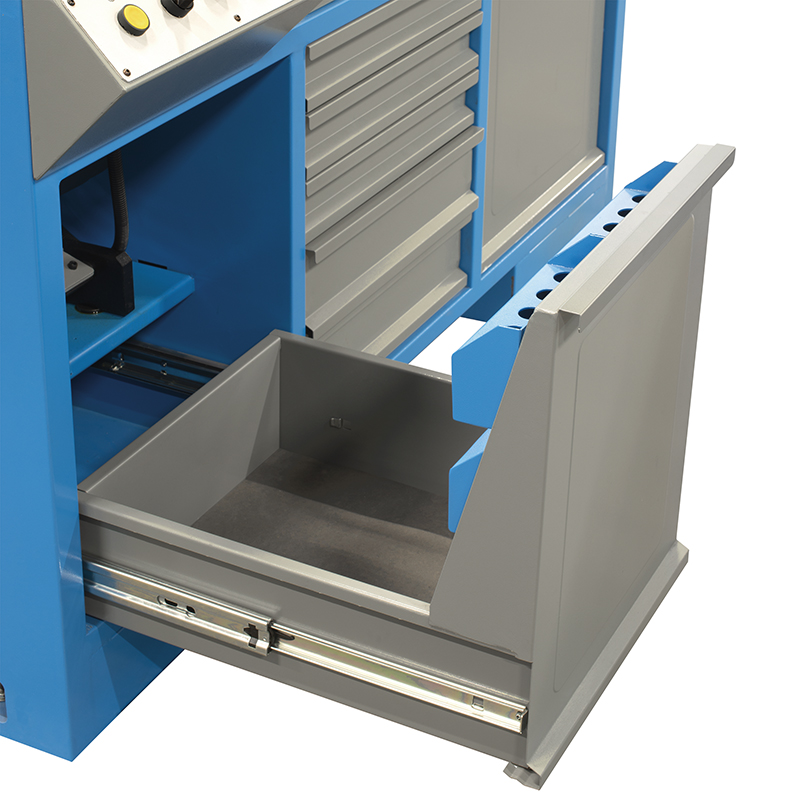

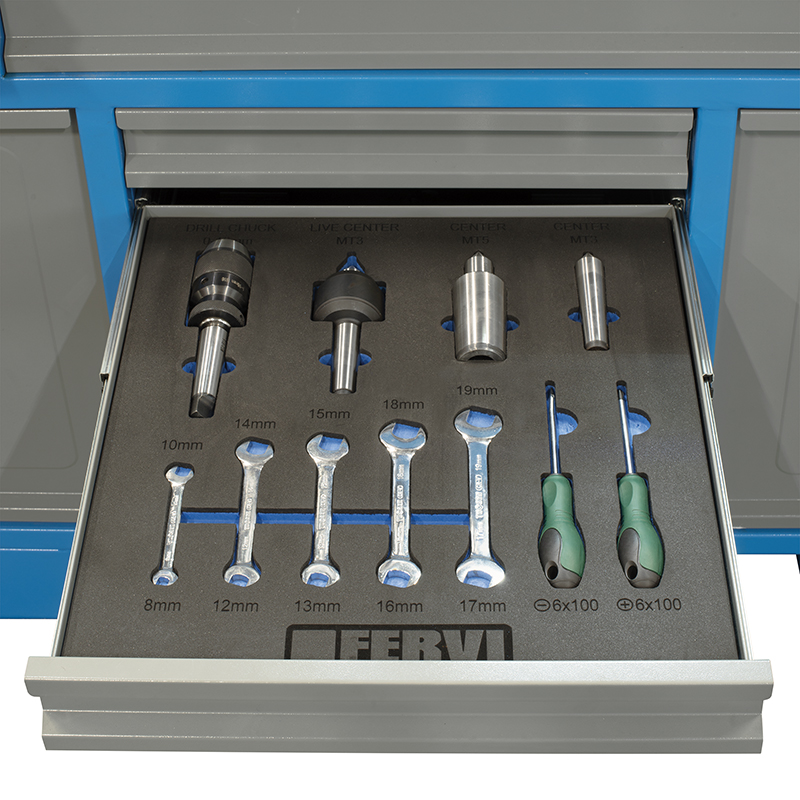

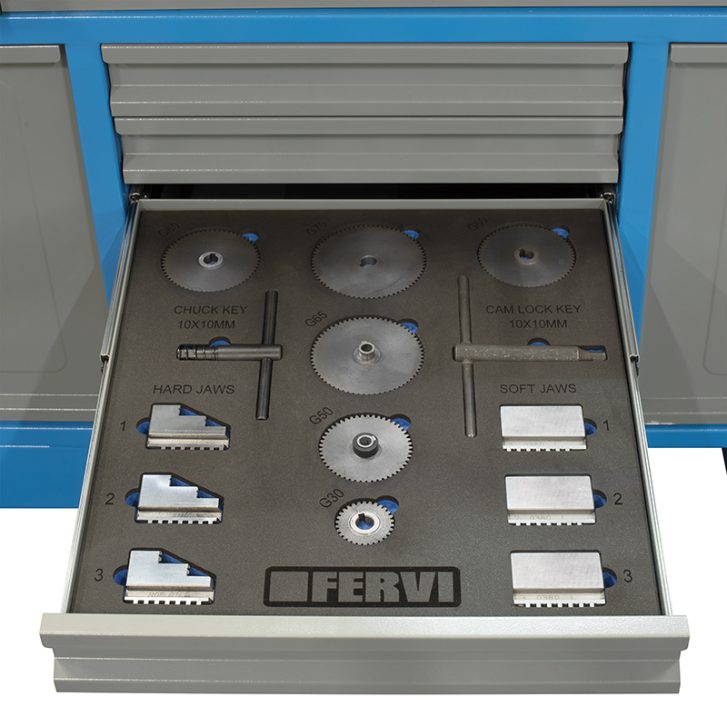

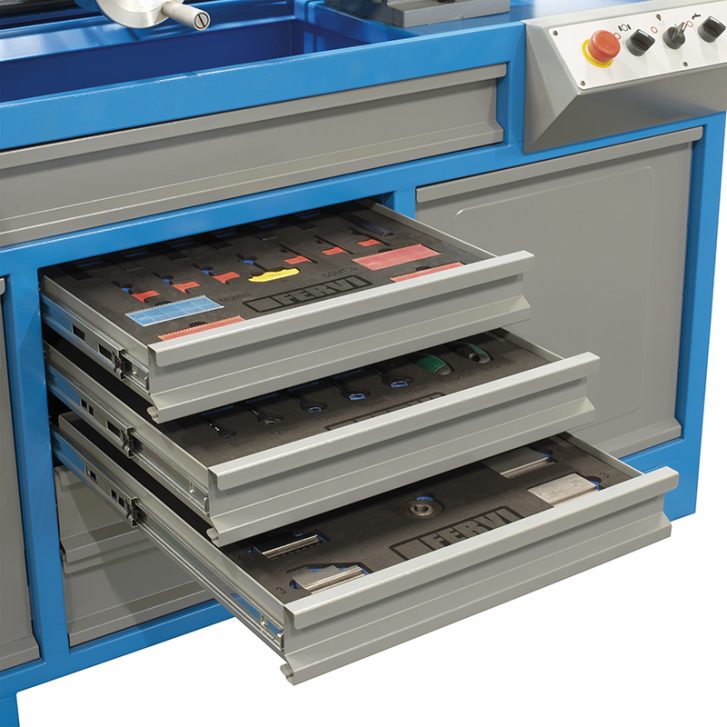

Drawers with sponge and accessories included

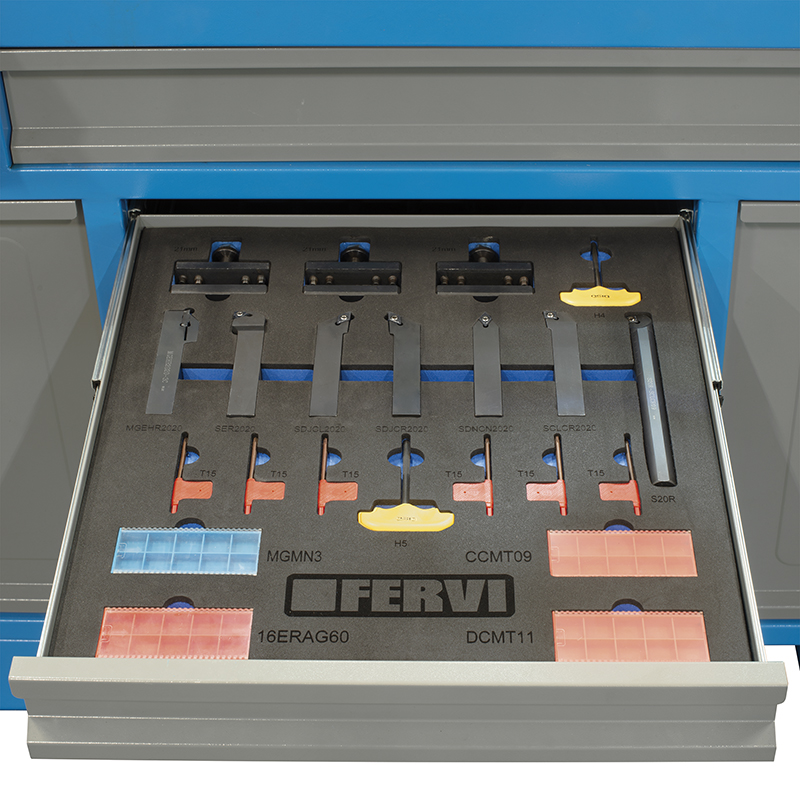

Set 7 Pcs tools 20 mm with turning inserts
