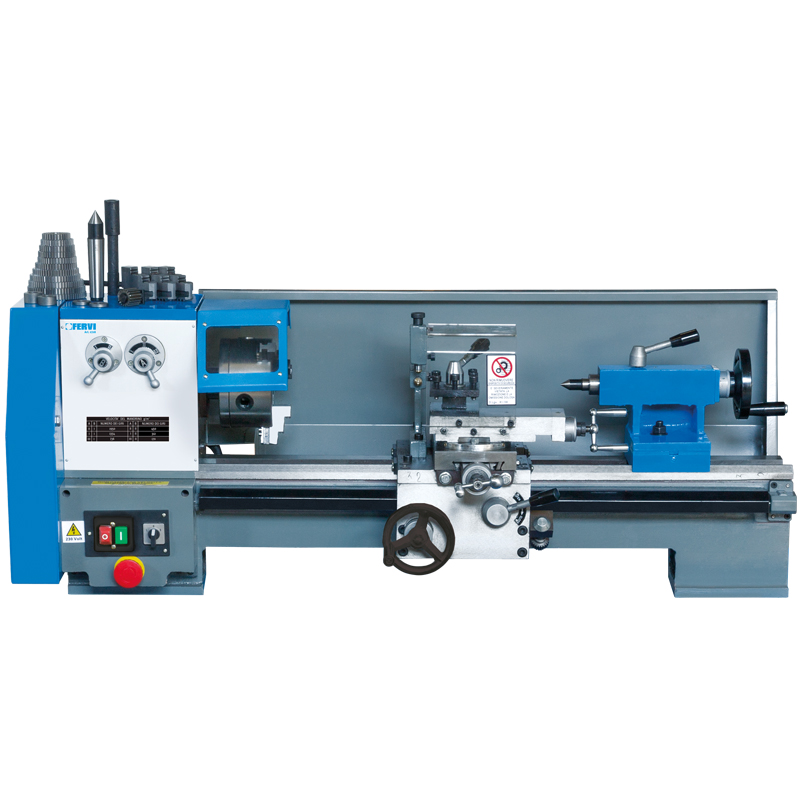

Gear Bench Lathe

Gear Bench Lathe

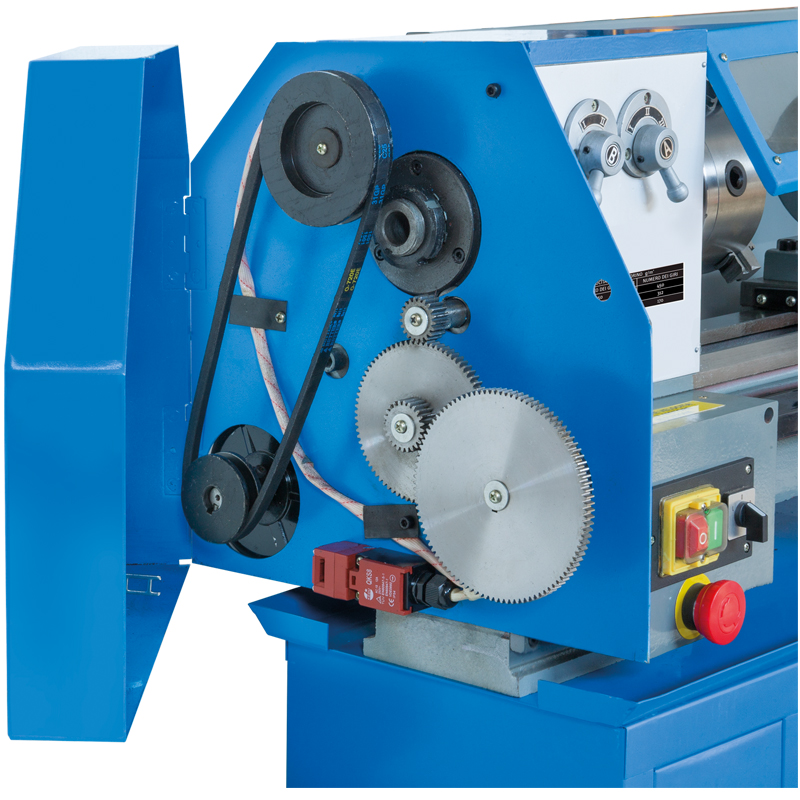

Gear Bench Lathe by Fervi pro smart equipment. With Speed change gears, morse tapered spindle bearings, adjustable signs, leadscrew hood, chuckguard and microswitch.

• Centers height 110 mm
• Max swing over the bed 200 mm
• Max swing over the cross slide 122 mm
• Tool height 12 mm
• Distance between centers 520 mm
• Spindle bore 20 mm
• Spindle bore taper MT 3
• Spindle speed (6) 170 ÷ 1950 rpm
• Longitudinal feeds 0,04 ÷ 0,20 mm/rev
• Metric threads 0,25 ÷ 3 mm
• Inch threads 8 ÷ 48 TPI
• Tailstock taper MT 2
• Motor 230 V 50 Hz 0,55 kW
• Dimensions 1080 x 440 x 400h mm
• Net weight 130 kg
• Packaging dimensions 1220 x 560 x 550 h mm
• Gross weight 143,50 kg
• EAN Code 8012667181864

Included:

• 3+3 jaw self centering chuck Ø 125 mm
• Follow rest
• Dead center MT2
• Dead center MT3
• Thread dial
• Leadscrew hood
• Turret safeguard with micro switch
• Chuck safeguard
• Full length splash guard
• 4 side fix tool post 12 mm
