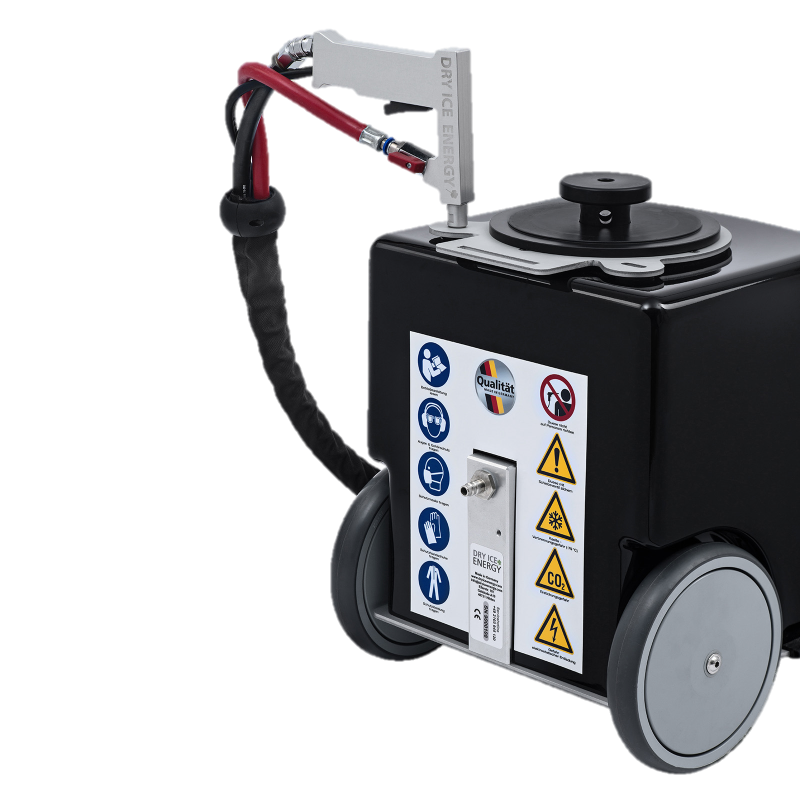

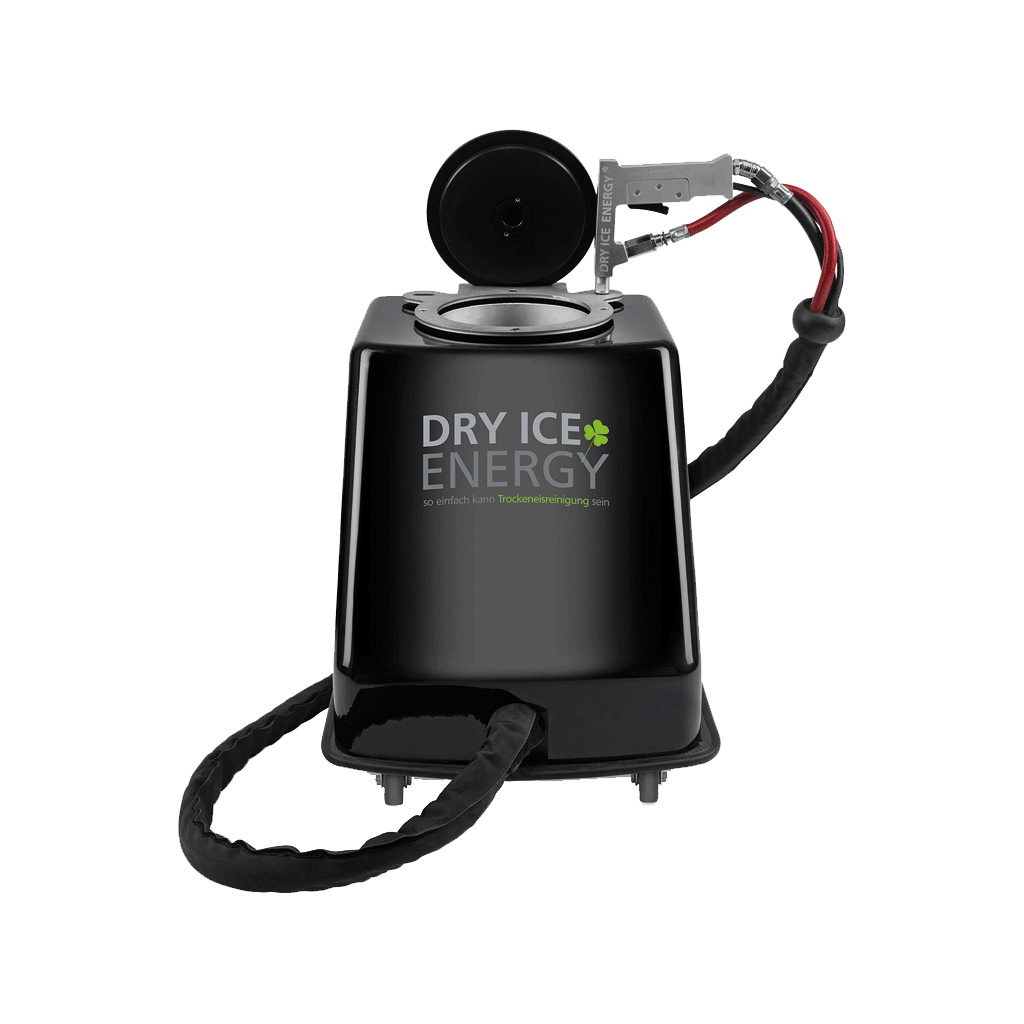

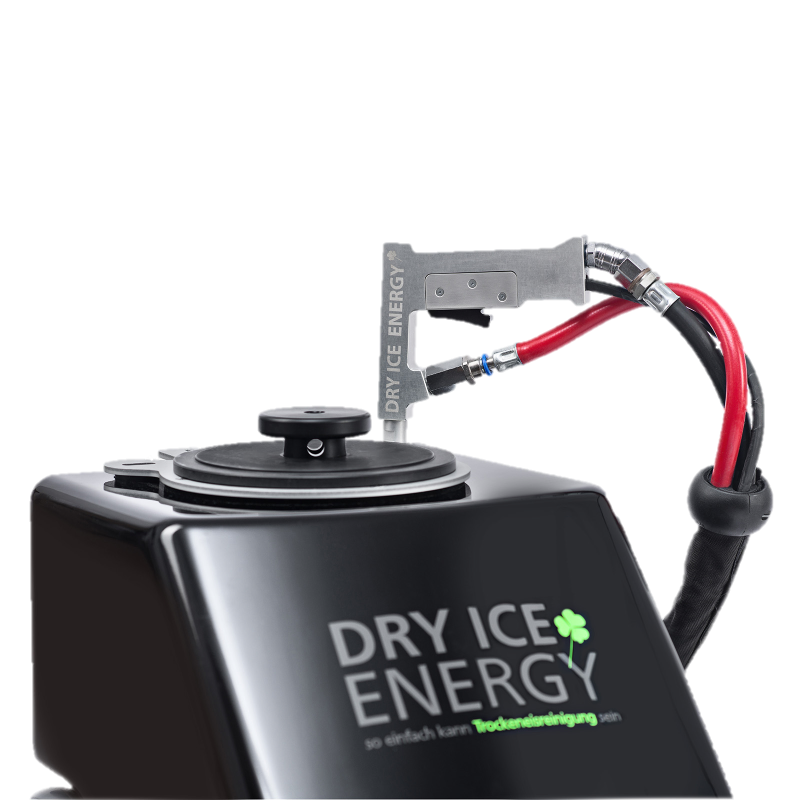

Champ Basic

Champ Basic

Champ Basic impresses with its low demands on compressed air supply and low dry ice consumption with high cleaning performance at the same time.

Technical parameters:

• Weight: 17 kg
• Size(LxWxH): 530x370x470mm
• Compressed air requirement: 400-800 l/m
• Compressed air connection: Quick coupling ½ inch
• Operating pressure: 1 – 8 bar
• Hopper capacity: 4,1 kg
• Blasting media: Dry Ice Energy mini pellets (approx. 1,5 mm)
• Dry ice consumption: 7 – 20 kg depending on the operating pressure and nozzle combination
• Compressed air consumption and requirements: 0,4 m³ – 0,8 m³, depending on the Nozzle combination and jet pressure.
• Compressed air requirement: clean, oil-free, dry, free from foreign bodies (Pressure dew point <10 ° C)
• Power supply: The system works purely pneumatically – no power connection required
• Volume: 60 dB (A) – 90 dB (A) – depending of the nozzle combination and the Surface of the object to be clean

Included equipment:

• Metering disc 3
• Pressure gauge incl water filter
• Blasting gun with 3m hose package
• 7m compressed air hose with safety cluch
• Connection of compressed air hose: European
• Standard hose NW 7.2 mm
• Ice shovel and user manual
