Car Battery Removal Lift

Car Battery Removal Lift

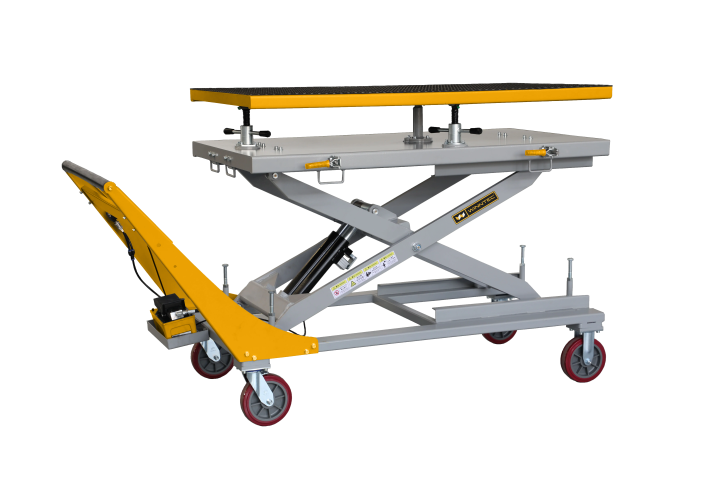

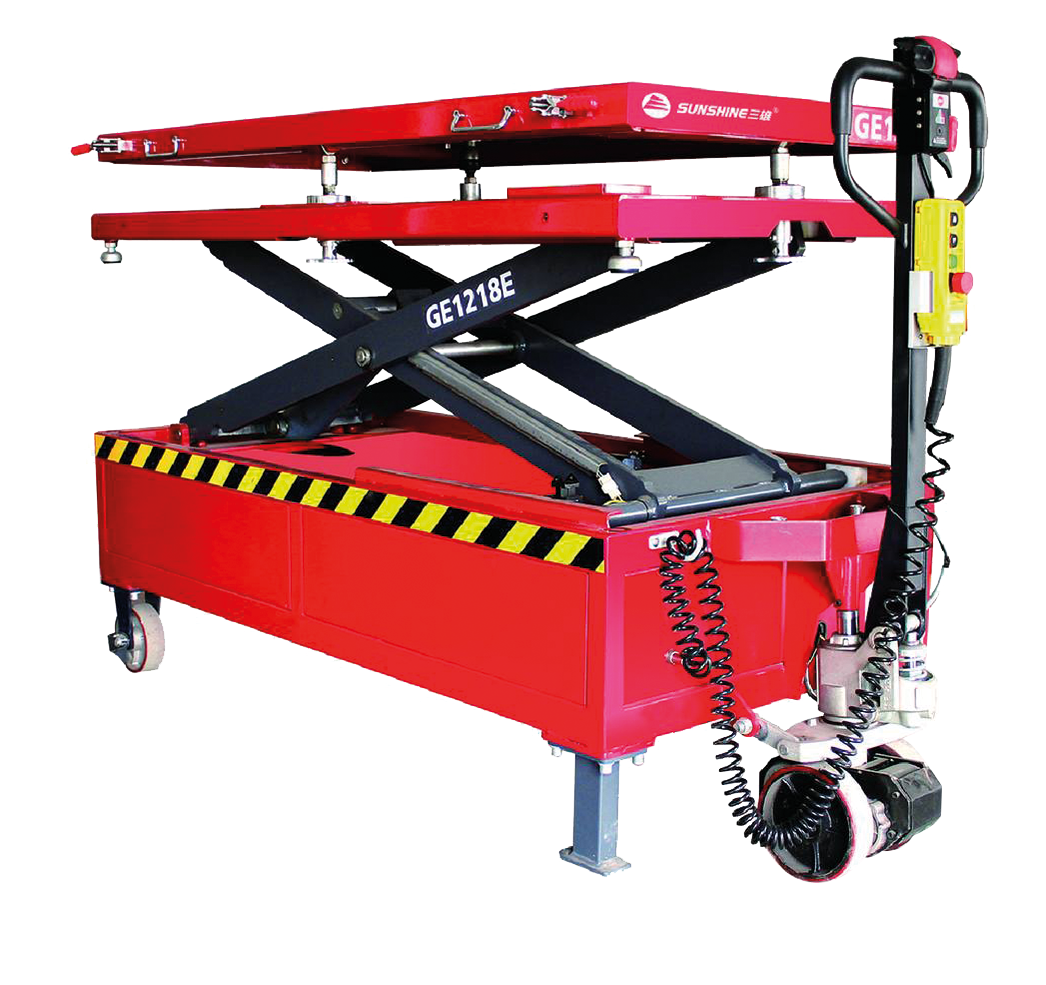

Car Battery Removal Lift by Winntec. The battery lift truck of pure new energy electric vehicle can replace the manual, disassemble and replace the power battery safely and efficiently. It is simple and convenient to operate, time-saving and labor-saving, safe and reliable, and can greatly improve the work efficiency. Under the background that manpower is scarce and expensive, and time is money, the advantages of this equipment make it stand out.

Characteristics

• Front and back left and right ball translation function. The first layer has the front and back left and right translation function, the rough positioning of the disassembly station needs to move the entire platform car toachieve, the platform has a bull eye ball convenient translation, there are 8 U-shaped push and pull handles around the platform, easy to use, the four directions of the bearing platform are installed with a locking handle, for the accurate alignment of the hole position in the heavy load state and the platform locking process.
• The front and back universal-joint tilt fine-tuning function. The second layer of the top layer battery bearing platform has the characteristics of high bearing capacity, and the three points of the universal-joint support tilt adjustment in any direction; It is convenient for the battery hanging ear hole and the body hole to quickly and directly fit, to solve the problem that the battery pack cannot fit the chassis due to uneven ground. The platform needs to be installed with a level;
• Equipped with 8 fixed insulated pallets, positioning holes on the platform to fix the pallet, easy to cross the rope lifting, or forklift operation, to ensure the safety of operation.
• Equipment structure is simple and easy to use, saving time and labor. Equipment only pneumatic hydraulic pump to control, easy to operate, a single person can complete the power battery replacement work, more suitable for two-person work operation.
• The equipment along the longitudinal flip action is realized by the hydraulic control mechanism, the structure
  of high transmission efficiency, smooth transmission, good neutrality.

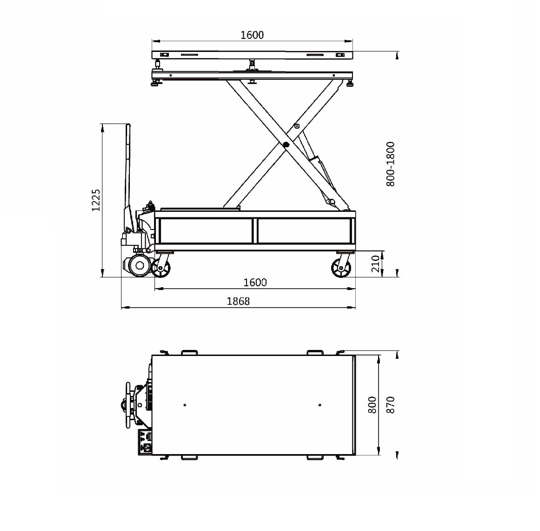

Technical Specifications

• Type of drive: Pneumatic hydraulic pressure
• Initial height of host: 800mm
• Rated lifting weight: 1500KG
• Lifting height of main engine: 1800mm
• Risetime: 60s
• Falling time: 20s
• Platform length: 1566mm
• Platform width: 800mm
• Whole machine weight: 500kg
• Gas source pressure: 2.8L
• Hydraulic pressure: 70Mpa
• Operating ambient temperature: -10-40℃
• Working environment humidity: 30-95%RH
• Equipment insulation grade: E Grade
