Bench Lathe – Belt Speed Change

Bench Lathe – Belt Speed Change

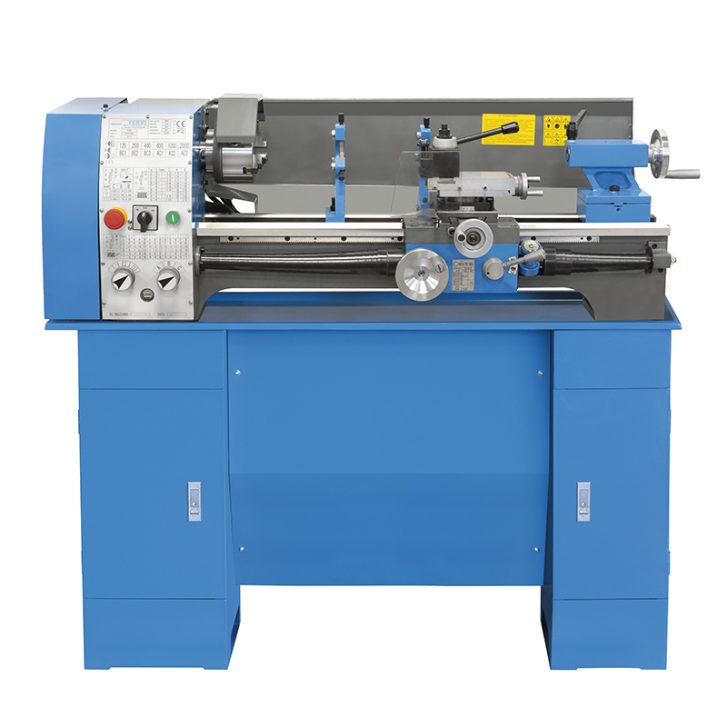

Bench Lathe – Belt Speed Change by Fervi pro smart equipment. Semi norton gearbox, partially assembled bench.

Centers height 140 mm

Max swing over the bed 280 mm

Max swing over the cross slide 165 mm

Tool height 14 mm

Max length of workpiece 660 mm

Spindle bore 26 mm

Spindle bore taper MT 4

Spindle speed (6) 125 ÷ 2000 rpm

Longitudinal feeds 0,063 ÷ 0,35 mm/rev

Metric threads 0,25 ÷ 3,5 mm

Inch threads 8 ÷ 72 TPI

Tailstock taper MT 2

Motor 230 V 50 Hz 0,75 kW

Dimensions 1325 x 550 x 1230 mm

Net weight 216 kg

Packaging dimensions 1360 x 570 x 1260 h mm

Gross weight 253,50 kg

EAN Code 8012667200169

Included:

3+3 self centering chuck ø 125 mm
4 Reversible indipendent jaw chuck Ø 160 mm
Face plate ø 200 mm
Flange for 4-jaw chuck Ø 160 mm
Follow rest
Steady rest
Dead center MT 2
Dead center MT 4
Live center MT 2
Thread dial
Leadscrew hood
Chuck safeguard
Splash guard
T0AA quick change tool post
