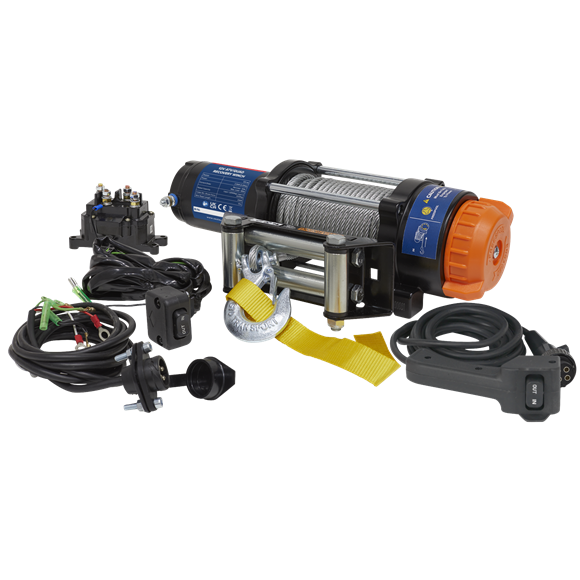

ATV/Quad Recovery Winch 4500lb 12V
€ 385.00 + VAT
Available on: 14/02/2025
Available on: 14/02/2025
Description
ATV/Quad Recovery Winch 4500lb 12V
ATV/Quad Recovery Winch 4500lb 12V by Sealey. Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
- High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power.
- All-metal chassis for long-life and low maintenance.
- Motor can easily be rotated 90° to meet various wiring and mounting requirements.
- Patented unique automatic spring brake, reliable in full load operation.
- High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
- Cable Length: 17m.
- Line Pull*: 2040kg(4500lb).
- IP67 rated.
- Gear Ratio: 180:1.
Technical Specifications:
- Current Draw: No-Load – 30A, Maximum Load – 185A
- Gear Ratio: 180:1
- Line Pull*: 2040kg(4500lb)
- Line Speed*: No-Load – 4.5m/min, Maximum Load – 1.3m/min
- Motor Power: 2.5kW(3.25hp)
- Nett Weight: 13.9kg
- Note: *Performance quoted at first layer of cable on drum
- Supply: 12V
- Wire Rope Diameter: 5.4mm
- Wire Rope Length: 17m
