75T Premier Heavy-Duty Air/Hydraulic Press

75T Premier Heavy-Duty Air/Hydraulic Press

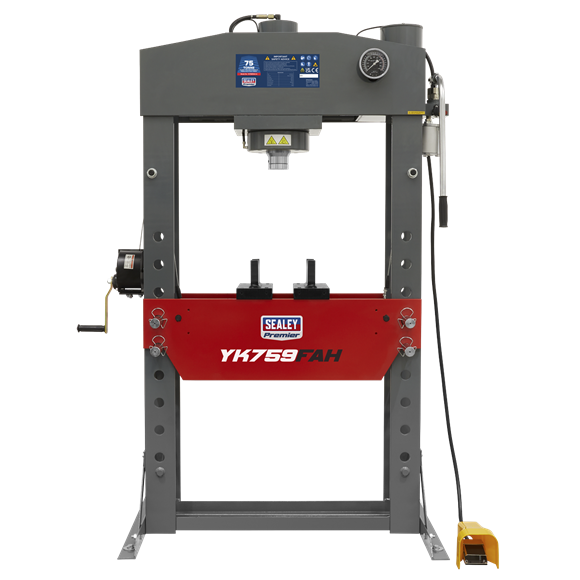

75T Premier Heavy-Duty Air/Hydraulic Press with foot pedal by Sealey. Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.

• 2-Speed manual operation.
• Sliding hydraulic ram assembly giving 260mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• 5 Year guarantee*.

Specifications:

• Air Consumption: 7cfm
• Bench or Floor Mounting: Floor
• Capacity: 75 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 260mm
• Maximum Height – Ram to Table: 884mm
• Minimum Height – Ram to Table: 170mm
• Nett Weight: 451kg
• Optional Accessories: YKSG75 – Safety Guard, YKPP8 – Press Pin Set
• Overall Height: 1925mm
• Overall Width: 1560mm
• Ram Diameter: Ø93mm
• Ram Stroke: 250mm
• Table Aperture: 251mm
• Type: Air/Hydraulic
• Working Table Depth: 279mm
• Working Table Width: 800mm

*This product is on backorder. Estimated time of delivery upon purchase is 3-4 weeks.
