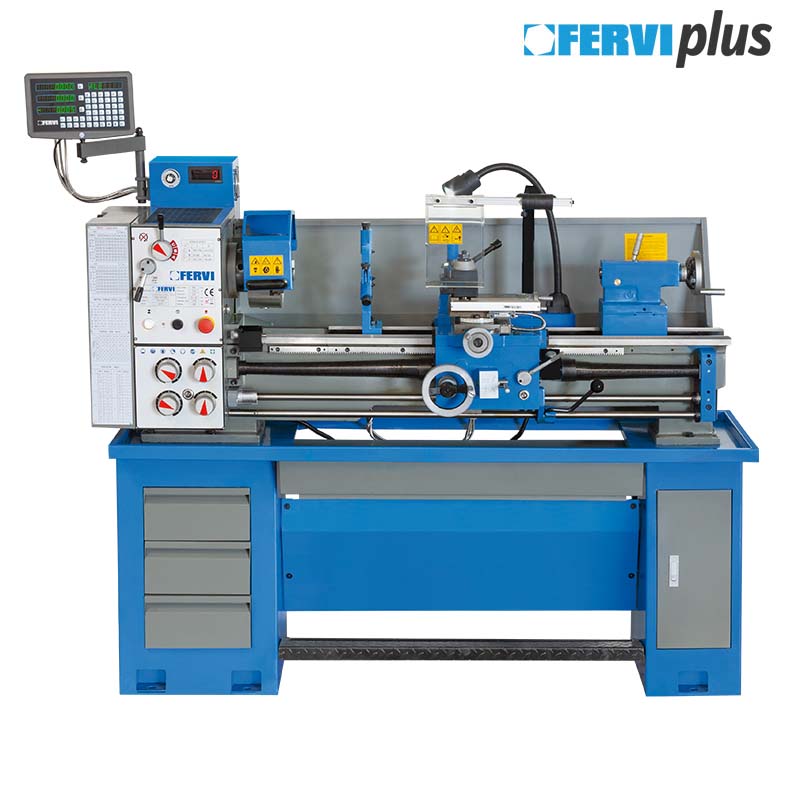

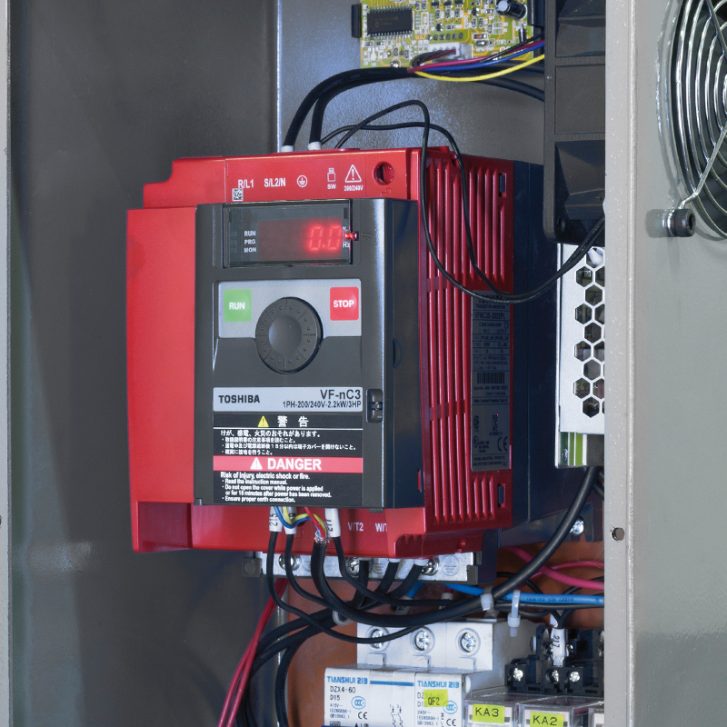

Gear Head Lathe with Inverter and Read Out

Gear Head Lathe with Inverter and Read Out

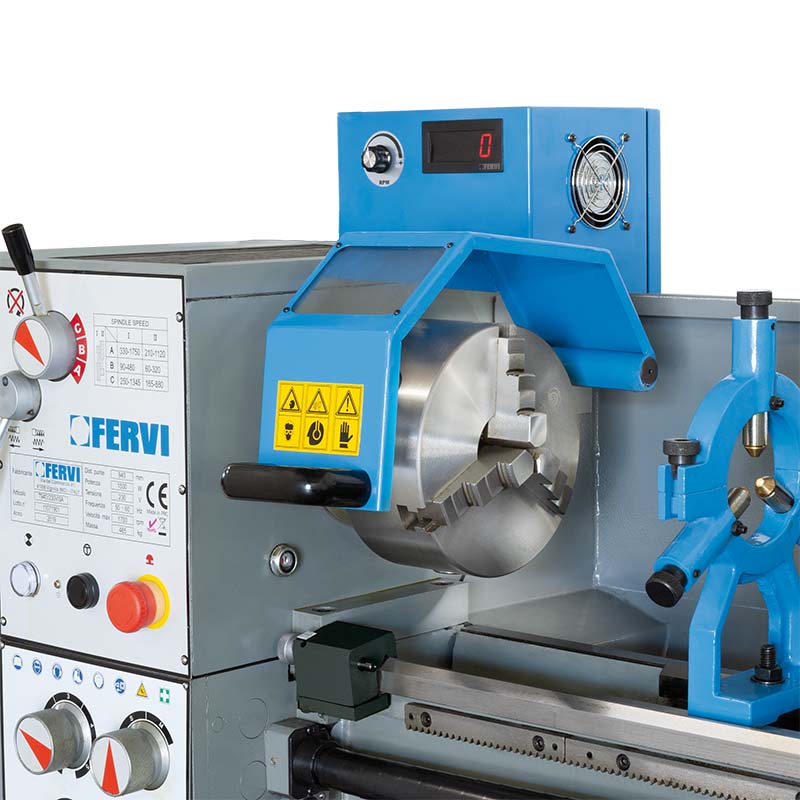

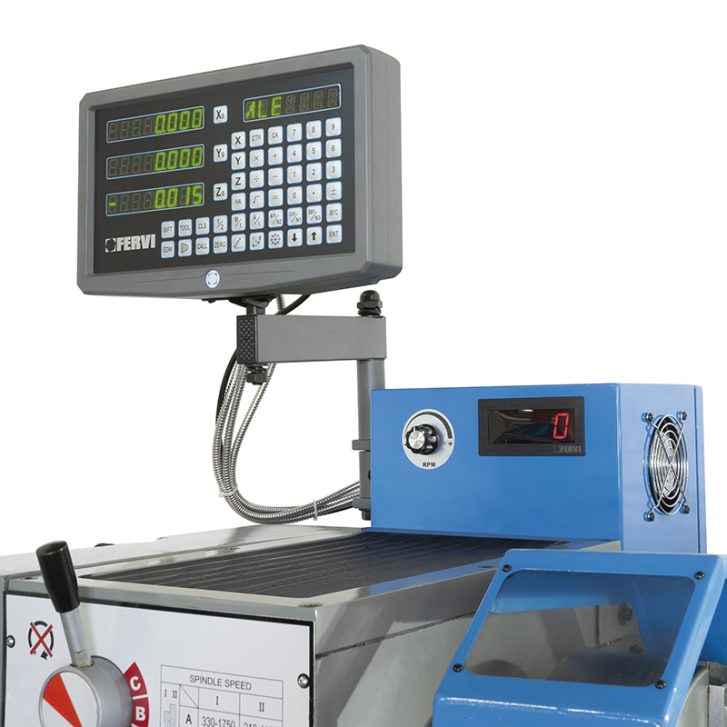

Gear Head Lathe with Inverter and Read Out by Fervi Pros smart equipment. 3-axis out and semi norton gear box. Turning bar with adjustable clutch and rotation speed display.

Centers height 160 mm

Max swing over the bed 340 mm

Max swing over the cross slide 180 mm

Max swing over the gap 460 mm

Tool height 16 mm

Max length of workpiece 940 mm

Spindle bore 38 mm

Spindle nose Camlock Camlock D1-4

Spindle bore taper MT 5

Variable spindle speed  65÷ 1750 rpm

Longitudinal feeds 0,053 ÷ 1,291 mm/rev

Cross feeds 0,011 ÷ 0,276 mm/rev

Metric threads 0,4 ÷ 7 mm

Inch threads 4 ÷ 60 TPI

Tailstock taper MT 3

Motor 230 V 50/60 Hz 1.5 kW

Dimensions 1770 x 1400 x 670 mm

Net weight 530 kg

Packaging dimensions 1920 x 1620 x 780 mm

Gross weight 566,00 kg

EAN Code 8012667254346

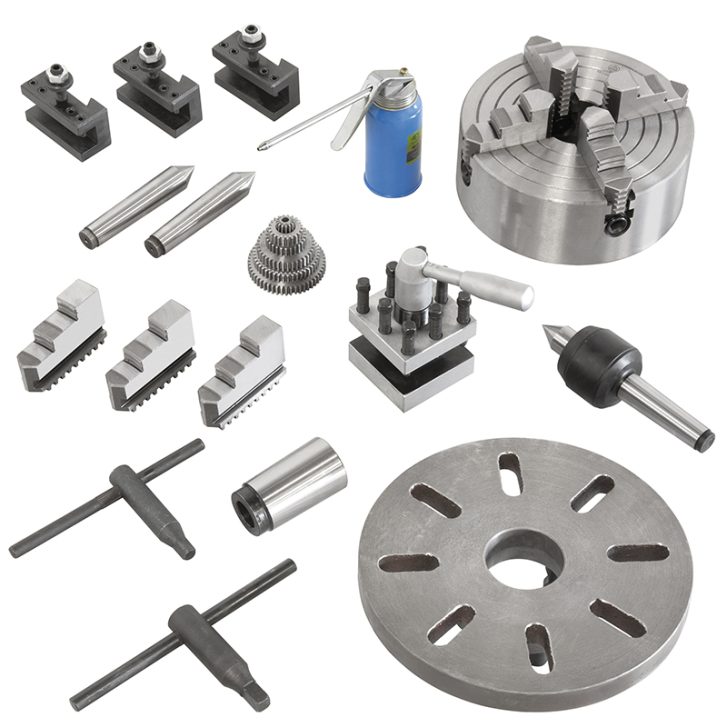

Included:

3+3 jaw self centering chuck Ø 160 mm
4 Reversible indipendent jaws chuck Ø 200 mm
Reduction sleeve MT 5/3
Face plate Ø 240 mm
Follow rest
Steady rest
Dead center MT 3
Dead center MT 5
Live center MT 3
Foot brake
Thread dial
Leadscrew hood
Turret protection
Chuck safeguard
Full length splash guard
T0AE quick change tool post
Working lamp LED
Quick locking tailstock carriage

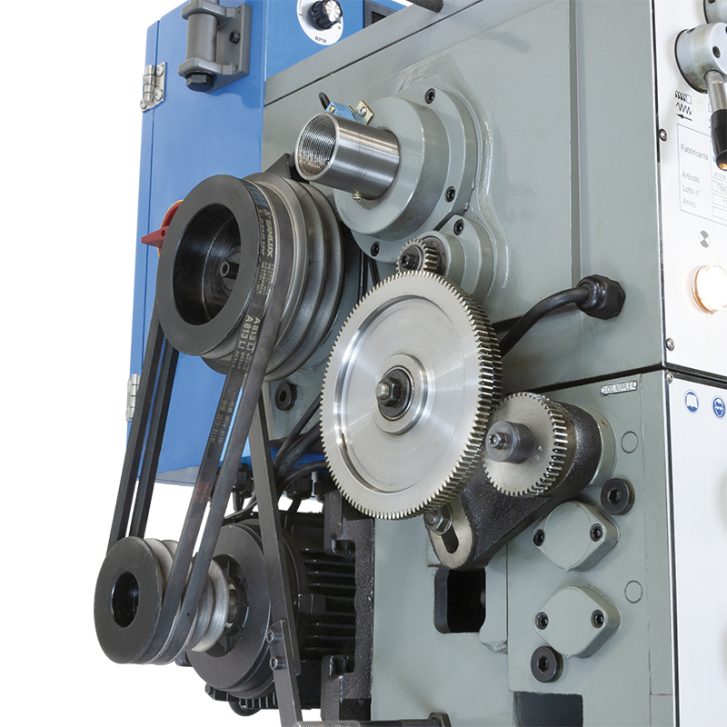

Wagon gears in oil bath
