20M Wire Rope Lever Hoist 1600KG

20M Wire Rope Lever Hoist 1600KG

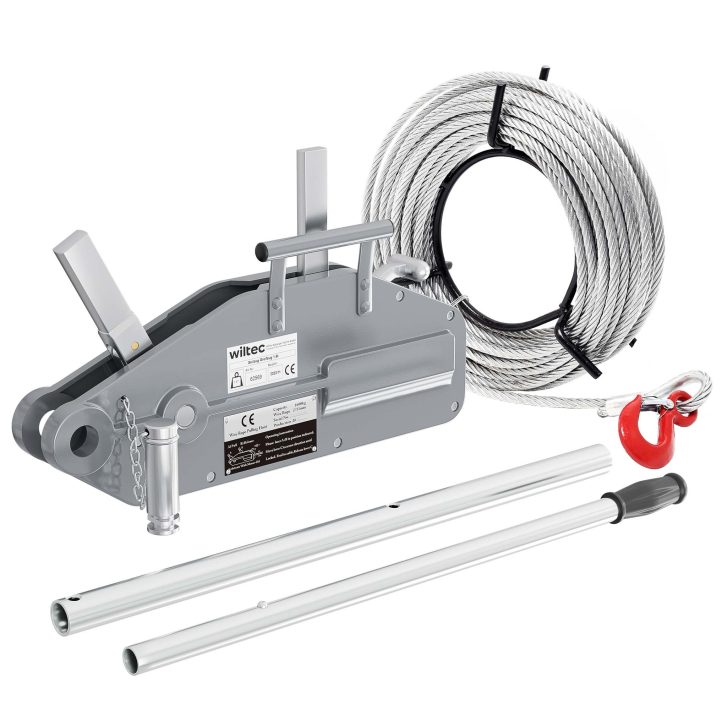

20M Wire Rope Lever Hoist 1600KG is a compact and lightweight hoist that can be used for lifting, pulling and tightening offering very long lifting heights. It works with a steel wire rope running through the jaws of the hoist with a pulling speed of app. 3 m/min. The double sets of jaws open in turns so that the wire rope will always stay tight during the lifting/lowering operation.

Features:

• Rated loading- 1600kg
• Safe – Each hoist is dynamic proof load tested 1,25 x WLL before leaving the factory.
• Compact, lightweight construction with aluminum covers.
• Durable construction with powder coated finish and plated frame components.
• Carrying handle for easy transportation and handling.
• 20 m coiled steel wire rope with latch hook is included and other lengths can be offered.
• Hooks are designed to open at overload instead of breaking.
• Hooks fitted with heavy duty steel safety latches.
• RFID equipped (chip) for easy service and inspection.
• QR code for on-site access to Multilanguage user manual.

• Material: Durable aluminium/steel construction, Rubber handle
• Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Wire rope type, Serial number, User manual/QR code.
• Temperature range:  -10°C up to +50°C
• Finish: White powder coated body, plated steel parts and galvanized wire rope / hook.
• Standard: EN 13157, EN 13414-1
• Note: Only original rope can be used with the hoist!
